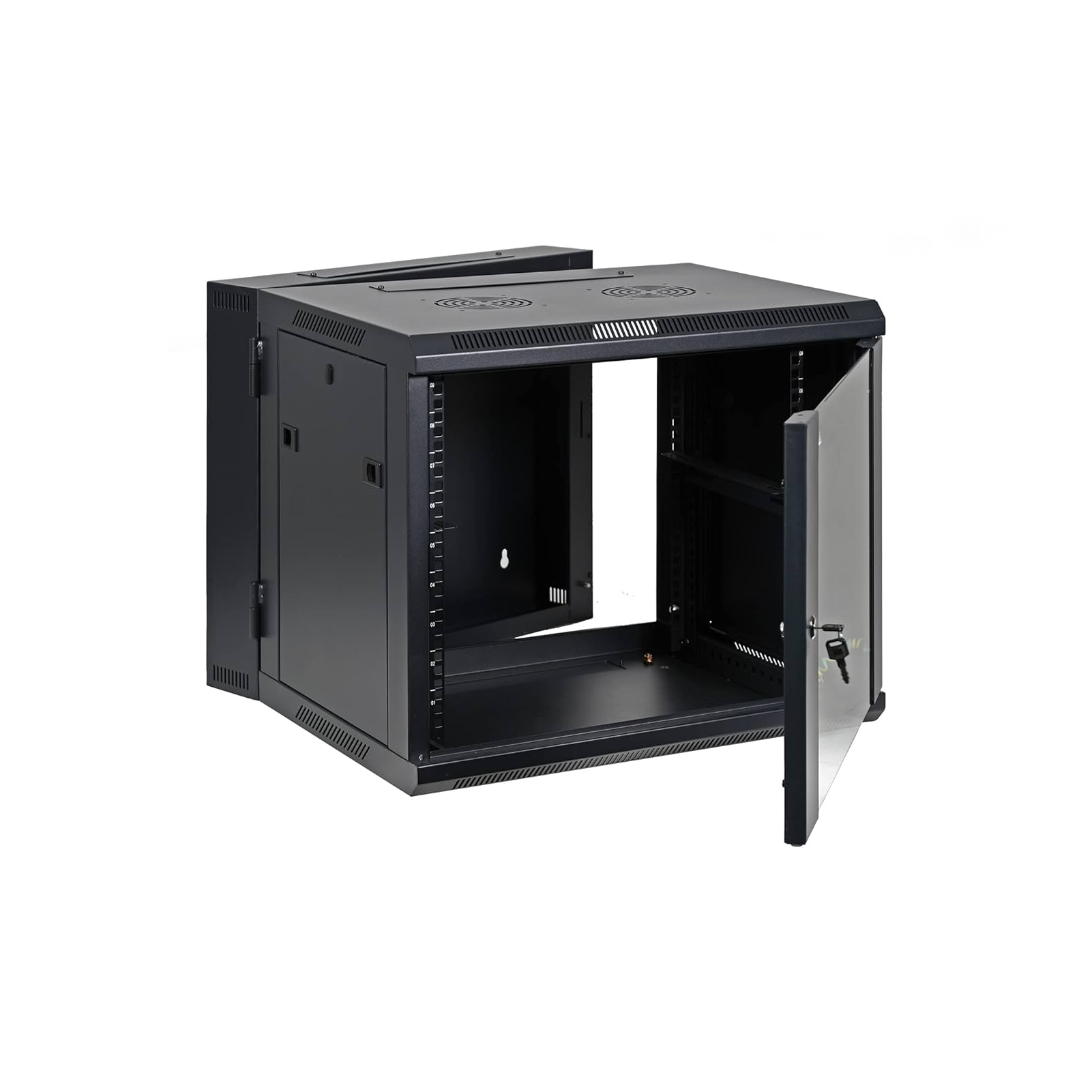

Wall-Mount Cabinet (Double-Section)
Feature:
- Toughened glass front door, turning angle is over 180 degrees
- 19″ standard installation welded frame, reliable structure.
- Assembled frame structure, easy handling, to maximize save shipping
cost. - 60 kg static loading capacity
- Standing or wall mounting installation, adjustable feet and castor are
optional. - Easy mounting installation (patent).
- Removable side panels, side locks optional.
- Knock out hole for entering cable on both of top cover and bottom panel.
- Fixed 100mm back section space
| Wall mount network cabinet (Double section) | |
| Main Material | SPCC cold rolled steel |
| Thickness | Mounting profile 1.5mm, mounting angle 1.2mm |
| Surface Finish | Degreasing, pickling, phosphoric, powder coated |
| Degree of Protection | lP20 |
| Loading Capacity | Static loading: 60KG |
| Color | Black RAL9004, Grey RAL7035 |
(W600 x D450+100)mm:
| Part Number | Description |
| PL-WD4U6045 | Wall Mount Cabinet 4U (W600 x D450+100)mm |
| PL-WD6U6045 | Wall Mount Cabinet 6U (W600 x D450+100)mm |
| PL-WD9U6045 | Wall Mount Cabinet 9U (W600 x D450+100)mm |
| PL-WD12U6045 | Wall Mount Cabinet 12U (W600 x D450+100)mm |
| PL-WD15U6045 | Wall Mount Cabinet 15U (W600 x D450+100)mm |
| PL-WD18U6045 | Wall Mount Cabinet 18U (W600 x D450+100)mm |
(W600 x D500+100)mm:
| Part Number | Description |
| PL-WD4U6060 | Wall Mount Cabinet 4U (W600 x D500+100)mm |
| PL-WD6U6060 | Wall Mount Cabinet 6U (W600 x D500+100)mm |
| PL-WD9U6060 | Wall Mount Cabinet 9U (W600 x D500+100)mm |
| PL-WD12U6060 | Wall Mount Cabinet 12U (W600 x D500+100)mm |
| PL-WD15U6060 | Wall Mount Cabinet 15U (W600 x D500+100)mm |
| PL-WD18U6060 | Wall Mount Cabinet 18U (W600 x D500+100)mm |
