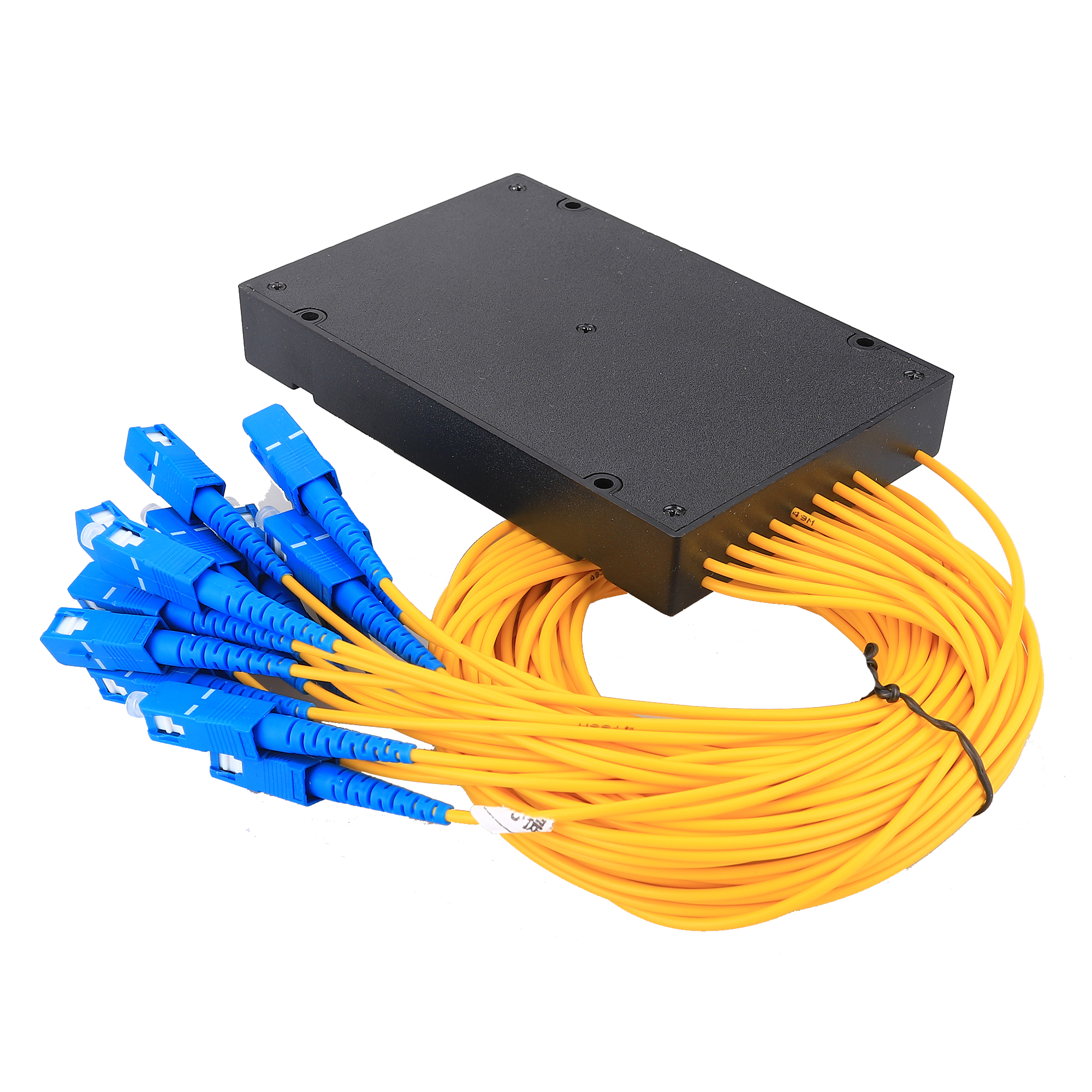

PLC Splitter ABS type
Product Description:

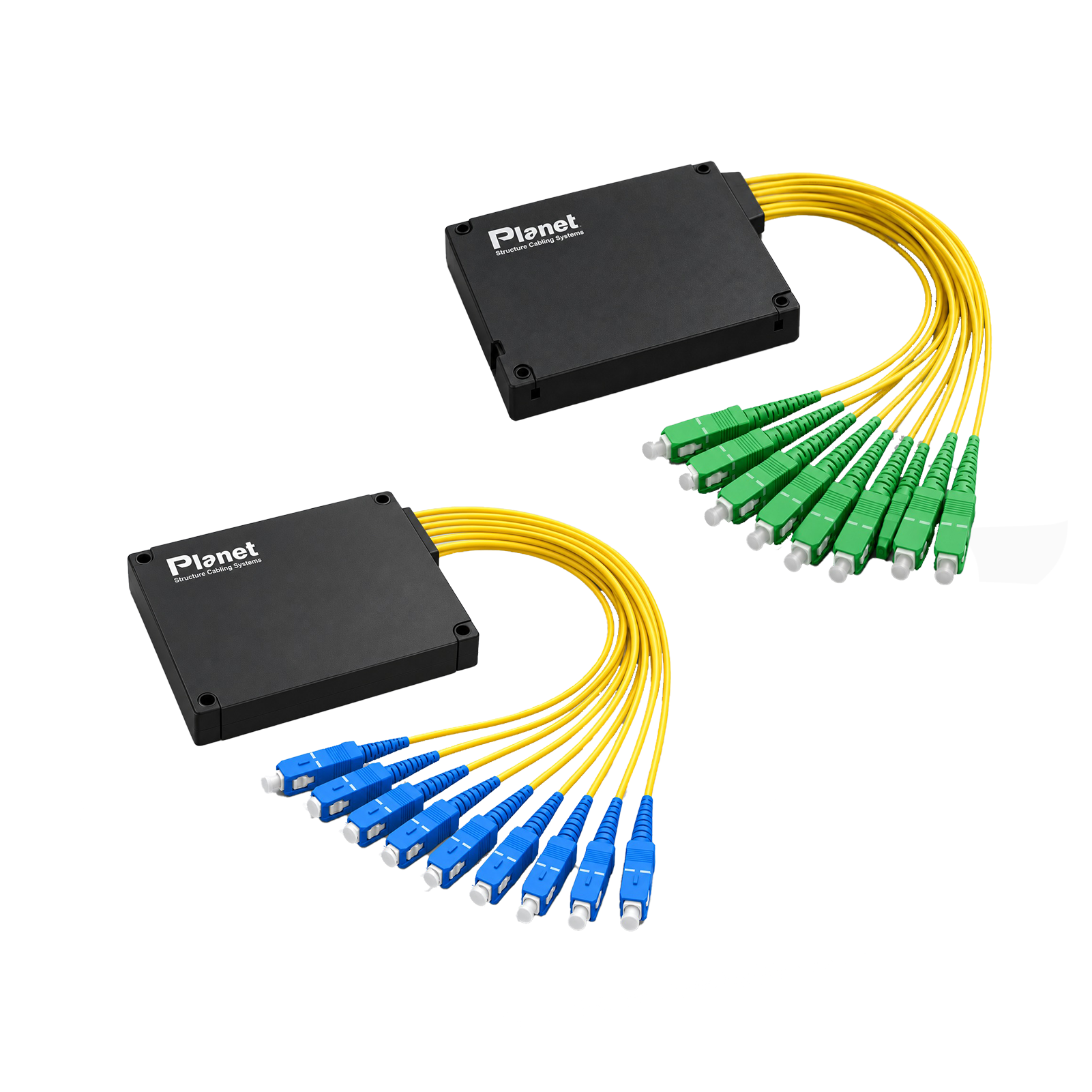

PLANET ABS Box PLC splitters are passive optical power-distribution devices for splitting or combining single-mode optical signals in PON, ODN and FTTx networks. The compact ABS module protects the PLC chip and fiber routing while supporting high channel uniformity, low PDL and wideband operation from 1260 to 1650 nm.
| Parameter | Specification |
| Splitter Technology | Planar Lightwave Circuit (PLC), ABS box module |
| Operating Wavelength | 1260–1650 nm |
| Optical Fiber | ITU-T G.657.A1 bend-insensitive single-mode fiber |
| Fiber Lead Length | 1.5 m standard |
| Connector Options | SC/APC or SC/UPC |
| Fiber Lead Construction | 900 µm standard |
| Directivity | ≥ 55 dB |
| Return Loss | ≥ 60 dB (SC/APC); ≥ 50 dB (SC/UPC) |
| Maximum Optical Power | 300 mW |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | ≤ 93% RH |
APC TYPE:
| PL-FSPSCSA21 | PLC Splitter 1: 2 ABS Box Type With1.5m SC APC Pigtails |
| PL-FSPSCSA41 | PLC Splitter 1: 4 ABS Box Type With1.5m SC APC Pigtails |

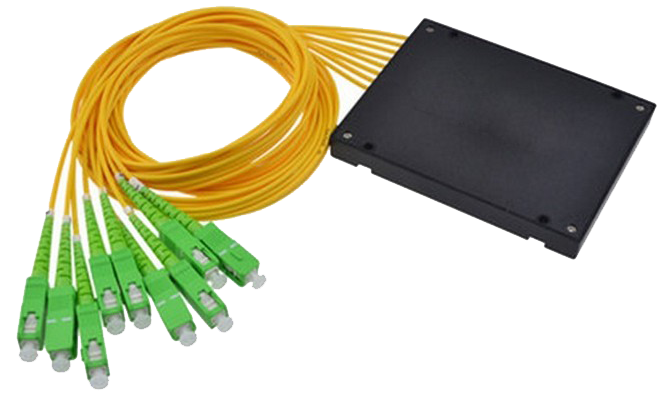

| PL-FSPSCSA81 | PLC Splitter 1: 8 ABS Box Type With1.5m SC APC Pigtails |
| PL-FSPSCSA161 | PLC Splitter 1: 16 ABS Box Type With1.5m SC APC Pigtails |
| PL-FSPSCSA321 | PLC Splitter 1: 32 ABS Box Type With1.5m SC APC Pigtails |
| PL-FSPSCSA641 | PLC Splitter 1: 64 ABS Box Type With1.5m SC APC Pigtails |
UPC TYPE:
| PL-FSPSCSU21 | PLC Splitter 1: 2 ABS Box Type With1.5m SC UPC Pigtails |
| PL-FSPSCSU41 | PLC Splitter 1: 4 ABS Box Type With1.5m SC UPC Pigtails |
| PL-FSPSCSU81 | PLC Splitter 1: 8 ABS Box Type With1.5m SC UPC Pigtails |
| PL-FSPSCSU161 | PLC Splitter 1: 16 ABS Box Type With1.5m SC UPC Pigtails |
| PL-FSPSCSU321 | PLC Splitter 1: 32 ABS Box Type With1.5m SC UPC Pigtails |
| PL-FSPSCSU641 | PLC Splitter 1: 64 ABS Box Type With1.5m SC UPC Pigtails |
