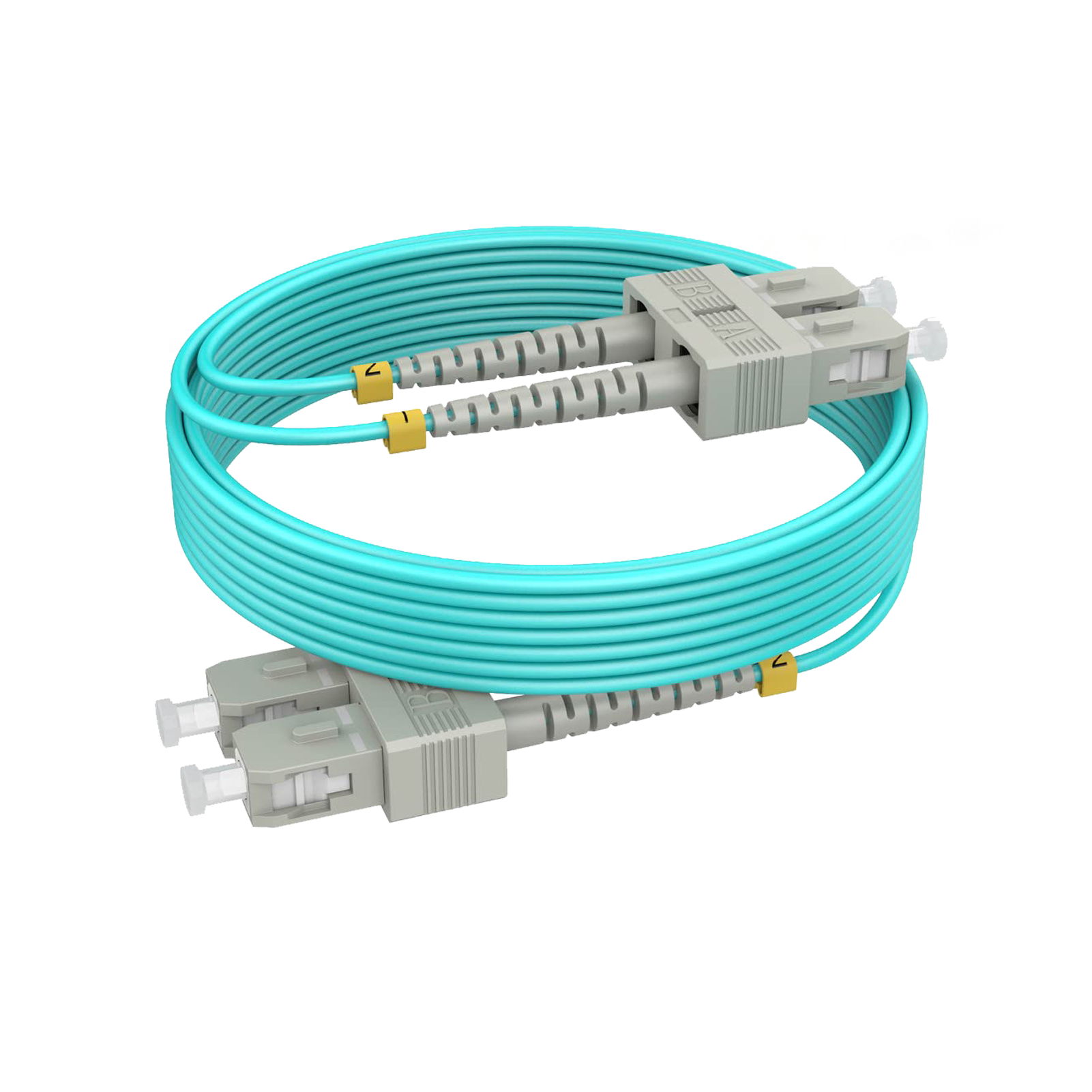

Patch Cord SC-SC Series
FEATURES:
- meets TIA/EIA 568-B.3 standard
- fiber meets ITU G652D & G655 and IEC60793-2
- connectors meet IEC60874 and IEC 61754
- environmental and mechanical tests based on IEC 61300-2-1,2,4,5,6,17, IEC61300-3-1,4,11, IEC 60332, IEC60754-1,2
- RoHS compliant
APPLICATIONS:
- Telecom network
- CATV
- FTTx
- End equipment
- Local Area Network
- Test equipment
CONSTRUCTION & COMPLIANCE
| Connector Interface | SC to SC |
| Connector Interface Standard | IEC 61754-4, Type SC connector family |
| Ferrule | Precision zirconia ceramic, 2.5 mm nominal |
| Test / Measurement Reference | IEC 61300 series, as applicable |
| Fiber Core | Simplex (SP/SX) or Duplex (DP/DX) |
| Cable Diameter | 2.0 mm or 3.0 mm; LSZH jacket available; other jacket materials on request |
| Fiber Classes | OS2 Single-mode 9/125 µm; OM2 / OM3 / OM4 Multimode 50/125 µm |
TECHNICAL SPECIFICATIONS
| Parameter | Single-mode UPC / PC | Single-mode APC | Multimode UPC |
| Insertion Loss | ≤ 0.20 dB | ≤ 0.20 dB | ≤ 0.20 dB |
| Return Loss | ≥ 50 dB | ≥ 60 dB | ≥ 30 dB |
| Operating Wavelength | 1310 / 1550 nm | 1310 / 1550 nm | 850 / 1300 nm |
| Interchangeability | ΔIL ≤ 0.20 dB | ΔIL ≤ 0.20 dB | ΔIL ≤ 0.20 dB |
| Vibration | ΔIL ≤ 0.20 dB | ΔIL ≤ 0.20 dB | ΔIL ≤ 0.20 dB |
| Connector Durability | ≥ 500 mating cycles | ≥ 500 mating cycles | ≥ 500 mating cycles |
| Operating Temperature | -40 to +75 °C | -40 to +75 °C | -40 to +75 °C |
| Storage Temperature | -45 to +85 °C | -45 to +85 °C | -45 to +85 °C |
SC/SC UPC Duplex Single Mode
| Part Number | Description |
| PL-PC22DSU01 | SC/SC UPC Duplex Single Mode , 9/125 ,1M |
| PL-PC22DSU03 | SC/SC UPC Duplex Single Mode , 9/125 ,3M |
| PL-PC22DSU05 | SC/SC UPC Duplex Single Mode , 9/125 ,5M |
| PL-PC22DSU10 | SC/SC UPC Duplex Single Mode , 9/125 ,10M |
| PL-PC22DSU20 | SC/SC UPC Duplex Single Mode , 9/125 ,20M |
| PL-PC22DSU40 | SC/SC UPC Duplex Single Mode , 9/125 ,40M |
| PL-PC22DSU50 | SC/SC UPC Duplex Single Mode , 9/125 ,50M |
| PL-PC22DSU60 | SC/SC UPC Duplex Single Mode , 9/125 ,60M |
| PL-PC22DSU80 | SC/SC UPC Duplex Single Mode , 9/125 ,80M |
| PL-PC22DSU100 | SC/SC UPC Duplex Single Mode , 9/125 ,100M |
SC/SC UPC Simplex Single Mode
| Part Number | Description |
| PL-PC22SSU01 | SC/SC UPC Simplex Single Mode, 9/125 ,1M |
| PL-PC22SSU03 | SC/SC UPC Simplex Single Mode, 9/125 ,3M |
| PL-PC22SSU05 | SC/SC UPC Simplex Single Mode, 9/125 ,5M |
| PL-PC22SSU10 | SC/SC UPC Simplex Single Mode, 9/125 ,10M |
| PL-PC22SSU20 | SC/SC UPC Simplex Single Mode, 9/125 ,20M |
| PL-PC22SSU40 | SC/SC UPC Simplex Single Mode, 9/125 ,40M |
| PL-PC22SSU50 | SC/SC UPC Simplex Single Mode, 9/125 ,50M |
| PL-PC22SSU60 | SC/SC UPC Simplex Single Mode, 9/125 ,60M |
| PL-PC22SU80 | SC/SC UPC Simplex Single Mode, 9/125 ,80M |
| PL-PC22SSU100 | SC/SC UPC Simplex Single Mode, 9/125 ,100M |
SC/SC APC Duplex Single Mode
| Part Number | Description |
| PL-PC22DSA01 | SC/SC APC Duplex Single Mode , 9/125 ,1M |
| PL-PC22DSA03 | SC/SC APC Duplex Single Mode , 9/125 ,3M |
| PL-PC22DSA05 | SC/SC APC Duplex Single Mode , 9/125 ,5M |
| PL-PC22DSA10 | SC/SC APC Duplex Single Mode , 9/125 ,10M |
| PL-PC22DSA20 | SC/SC APC Duplex Single Mode , 9/125 ,20M |
| PL-PC22DSA40 | SC/SC APC Duplex Single Mode , 9/125 ,40M |
| PL-PC22DSA50 | SC/SC APC Duplex Single Mode , 9/125 ,50M |
| PL-PC22DSA60 | SC/SC APC Duplex Single Mode , 9/125 ,60M |
| PL-PC22DSA80 | SC/SC APC Duplex Single Mode , 9/125 ,80M |
| PL-PC22DSA100 | SC/SC APC Duplex Single Mode , 9/125 ,100M |
SC/SC APC Simplex Single Mode
| Part Number | Description |
| PL-PC22SSA01 | SC/SC APC Simplex Single Mode, 9/125 ,1M |
| PL-PC22SSA03 | SC/SC APC Simplex Single Mode, 9/125 ,3M |
| PL-PC22SSA05 | SC/SC APC Simplex Single Mode, 9/125 ,5M |
| PL-PC22SSA10 | SC/SC APC Simplex Single Mode, 9/125 ,10M |
| PL-PC22SSA20 | SC/SC APC Simplex Single Mode, 9/125 ,20M |
| PL-PC22SSA40 | SC/SC APC Simplex Single Mode, 9/125 ,40M |
| PL-PC22SSA50 | SC/SC APC Simplex Single Mode, 9/125 ,50M |
| PL-PC22SSA60 | SC/SC APC Simplex Single Mode, 9/125 ,60M |
| PL-PC22SA80 | SC/SC APC Simplex Single Mode, 9/125 ,80M |
| PL-PC22SSA100 | SC/SC APC Simplex Single Mode, 9/125 ,100M |
SC/SC Duplex Multi Mode OM2
| Part Number | Description |
| PL-PC22DMU01 | SC/SC Duplex Multi Mode,OM2,1M |
| PL-PC22DMU03 | SC/SC Duplex Multi Mode,OM2,3M |
| PL-PC22DMU05 | SC/SC Duplex Multi Mode,OM2,5M |
| PL-PC22DMU10 | SC/SC Duplex Multi Mode,OM2,10M |
| PL-PC22DMU20 | SC/SC Duplex Multi Mode,OM2,20M |
| PL-PC22DMU40 | SC/SC Duplex Multi Mode,OM2,40M |
| PL-PC22DMU50 | SC/SC Duplex Multi Mode,OM2,50M |
| PL-PC22DMU60 | SC/SC Duplex Multi Mode,OM2,60M |
| PL-PC22DMU80 | SC/SC Duplex Multi Mode,OM2,80M |
| PL-PC22DMU100 | SC/SC Duplex Multi Mode,OM2,100M |
SC/SC Simplex Multi Mode OM2
| Part Number | Description |
| PL-PC22SMU01 | SC/SC Simplex Multi Mode,OM2,1M |
| PL-PC22SMU03 | SC/SC Simplex Multi Mode,OM2,3M |
| PL-PC22SMU05 | SC/SC Simplex Multi Mode,OM2,5M |
| PL-PC22SMU10 | SC/SC Simplex Multi Mode,OM2,10M |
| PL-PC22SMU20 | SC/SC Simplex Multi Mode,OM2,20M |
| PL-PC22SMU40 | SC/SC Simplex Multi Mode,OM2,40M |
| PL-PC22SMU50 | SC/SC Simplex Multi Mode,OM2,50M |
| PL-PC22SMU60 | SC/SC Simplex Multi Mode,OM2,60M |
| PL-PC22SMU80 | SC/SC Simplex Multi Mode,OM2,80M |
| PL-PC22SMU100 | SC/SC Simplex Multi Mode,OM2,100M |
SC/SC Duplex Multi Mode OM3
| Part Number | Description |
| PL-PC22DM3U01 | SC/SC Duplex Multi Mode,OM3,1M |
| PL-PC22DM3U03 | SC/SC Duplex Multi Mode,OM3,3M |
| PL-PC22DM3U05 | SC/SC Duplex Multi Mode,OM3,5M |
| PL-PC22DM3U10 | SC/SC Duplex Multi Mode,OM3,10M |
| PL-PC22DM3U20 | SC/SC Duplex Multi Mode,OM3,20M |
| PL-PC22DM3U40 | SC/SC Duplex Multi Mode,OM3,40M |
| PL-PC22DM3U50 | SC/SC Duplex Multi Mode,OM3,50M |
| PL-PC22DM3U60 | SC/SC Duplex Multi Mode,OM3,60M |
| PL-PC22DM3U80 | SC/SC Duplex Multi Mode,OM3,80M |
| PL-PC22DM3U100 | SC/SC Duplex Multi Mode,OM3,100M |
SC/SC Simplex Multi Mode OM3
| Part Number | Description |
| PL-PC22SM3U01 | SC/SC Simplex Multi Mode,OM3,1M |
| PL-PC22SM3U03 | SC/SC Simplex Multi Mode,OM3,3M |
| PL-PC22SM3U05 | SC/SC Simplex Multi Mode,OM3,5M |
| PL-PC22SM3U10 | SC/SC Simplex Multi Mode,OM3,10M |
| PL-PC22SM3U20 | SC/SC Simplex Multi Mode,OM3,20M |
| PL-PC22SM3U40 | SC/SC Simplex Multi Mode,OM3,40M |
| PL-PC22SM3U50 | SC/SC Simplex Multi Mode,OM3,50M |
| PL-PC22SM3U60 | SC/SC Simplex Multi Mode,OM3,60M |
| PL-PC22SM3U80 | SC/SC Simplex Multi Mode,OM3,80M |
| PL-PC22SM3U100 | SC/SC Simplex Multi Mode,OM3,100M |
SC/SC Duplex Multi Mode OM4
| Part Number | Description |
| PL-PC22DM4U01 | SC/SC Duplex Multi Mode,OM4,1M |
| PL-PC22DM4U03 | SC/SC Duplex Multi Mode,OM4,3M |
| PL-PC22DM4U05 | SC/SC Duplex Multi Mode,OM4,5M |
| PL-PC22DM4U10 | SC/SC Duplex Multi Mode,OM4,10M |
| PL-PC22DM4U20 | SC/SC Duplex Multi Mode,OM4,20M |
| PL-PC22DM4U40 | SC/SC Duplex Multi Mode,OM4,40M |
| PL-PC22DM4U50 | SC/SC Duplex Multi Mode,OM4,50M |
| PL-PC22DM4U60 | SC/SC Duplex Multi Mode,OM4,60M |
| PL-PC22DM4U80 | SC/SC Duplex Multi Mode,OM4,80M |
| PL-PC22DM4U100 | SC/SC Duplex Multi Mode,OM4,100M |
SC/SC Simplex Multi Mode OM4
| Part Number | Description |
| PL-PC22SM4U01 | SC/SC Simplex Multi Mode,OM4,1M |
| PL-PC22SM4U03 | SC/SC Simplex Multi Mode,OM4,3M |
| PL-PC22SM4U05 | SC/SC Simplex Multi Mode,OM4,5M |
| PL-PC22SM4U10 | SC/SC Simplex Multi Mode,OM4,10M |
| PL-PC22SM4U20 | SC/SC Simplex Multi Mode,OM4,20M |
| PL-PC22SM4U40 | SC/SC Simplex Multi Mode,OM4,40M |
| PL-PC22SM4U50 | SC/SC Simplex Multi Mode,OM4,50M |
| PL-PC22SM4U60 | SC/SC Simplex Multi Mode,OM4,60M |
| PL-PC22SM4U80 | SC/SC Simplex Multi Mode,OM4,80M |
| PL-PC22SM4U100 | SC/SC Simplex Multi Mode,OM4,100M |
