Outdoor Fiber Optic Cable- GYTS-Steel Armored
PLANET GYTS is a metallic armored outdoor fiber optic cable family based on stranded loose tube construction. The GYTS code is used as a family reference; project approval shall be based on the actual cable structure, fiber type, armor, sheath and mechanical values stated in the approved product specification. Standard fiber selection is OS2 single-mode, while OM3, OM4 and OM5 multimode versions can be supplied upon project request.

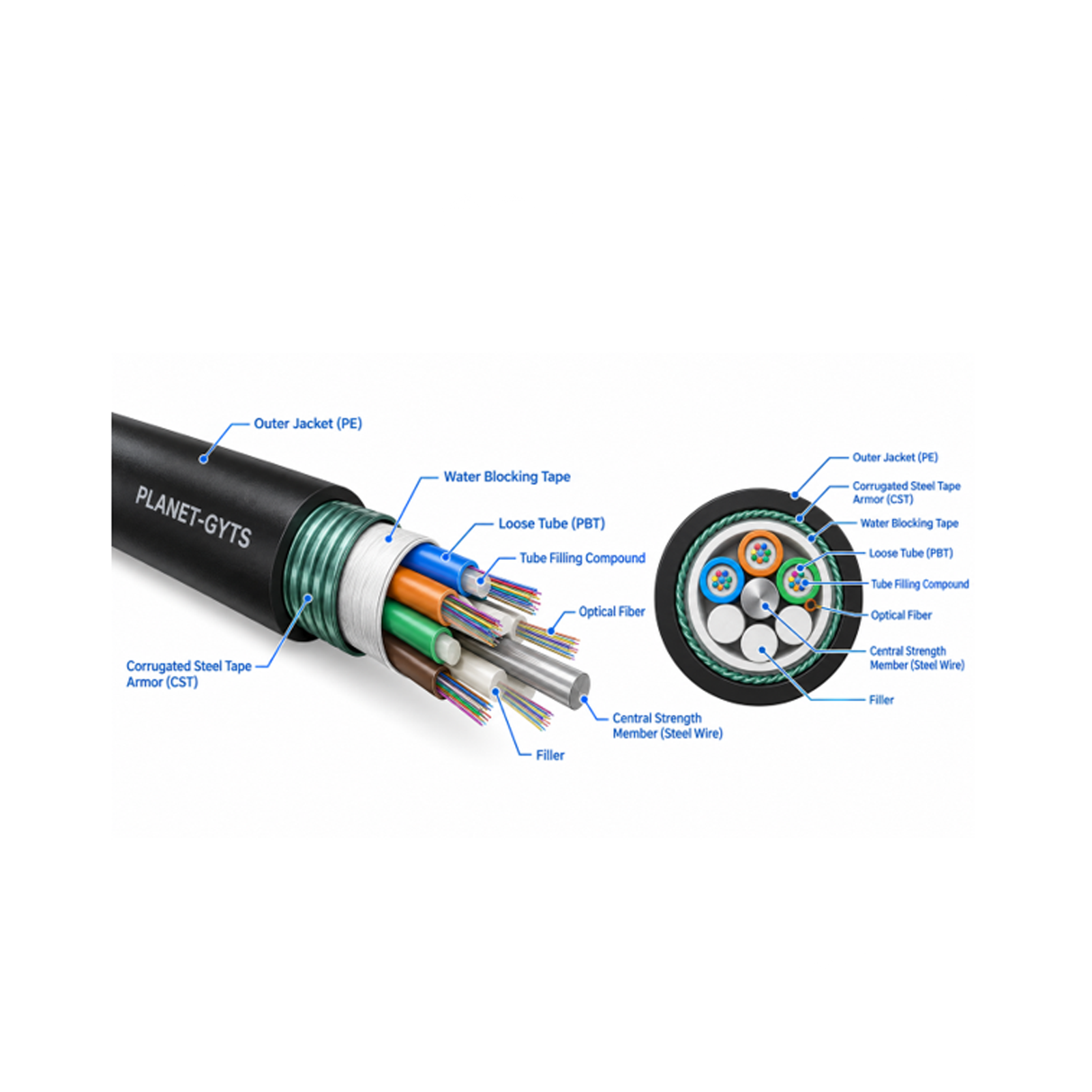

Typical construction: color-coded optical fibers inside PBT loose tubes stranded around a central steel strength member, with longitudinal water blocking, corrugated steel tape mechanical protection and a black outdoor-grade PE outer sheath. Fiber type may be OS2 G.652.D as standard or OM3 / OM4 / OM5 depending on the approved project requirement.
| Parameter | Specification |
| Fiber Type | OS2 Single Mode 9/125 µm (ITU-T G.652.D standard; G.657.A1 / G.657.A2 optional) or Multimode 50/125 µm (OM3 / OM4 / OM5 upon project request). |
| Fiber Count | Typical range 2F to 144F. Common backbone counts: 12F, 24F, 48F, 72F, 96F and 144F. |
| Loose Tube | Color-coded PBT loose tubes containing optical fibers; gel-filled or dry water-blocking design according to order. |
| Stranding | Loose tubes and fillers stranded around the central strength member. |
| Central Strength Member | Steel wire / phosphated steel wire, sized according to cable design. |
| Fillers | PP or equivalent fillers used as required to maintain cable geometry and roundness. |
| Water Blocking | Water-blocking tape / yarn and filling compound according to final construction. |
| Armor | Corrugated steel tape (CST) mechanical armor. |
| Outer Jacket | Black polyethylene (PE), outdoor grade, UV and weather resistant. |
| Cable Identification | Sequential length marking and PLANET / cable-type printing according to approved production artwork. |
| Cable Classification | Armored | Metallic | Not dielectric |
| Armor Type | Corrugated Steel Tape (CST) metallic armor. |
| Part Number | Description |
| PL-GYTS-xxS2 | Outdoor Fiber Optic Cable Single Mode OS2 |
| PL-GYTS-xxM3 | Outdoor Fiber Optic Cable Multi Mode OM3 |
| PL-GYTS-xxM4 | Outdoor Fiber Optic Cable Multi Mode OM4 |
| PL-GYTS-xxM5 | Outdoor Fiber Optic Cable Multi Mode OM5 |
