Outdoor Fiber Optic Cable – GYFXTY – Dielectric Central Tube
PLANET GYFXTY is an all-dielectric outdoor fiber optic cable family based on central loose tube construction. The GYFXTY code is used as a family reference; project approval shall be based on the actual cable structure, fiber type, reinforcement, sheath and mechanical values stated in the approved product specification.

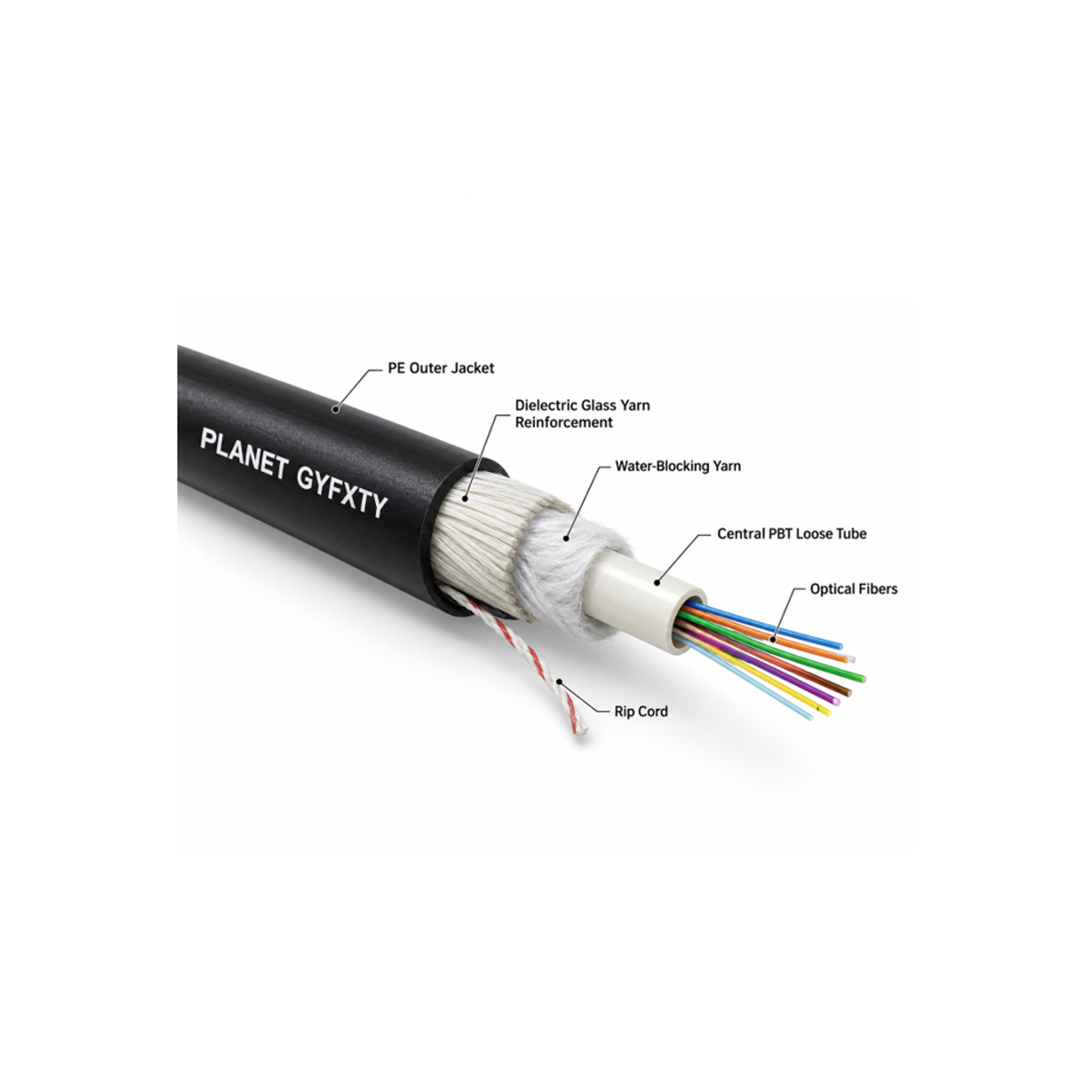

Typical construction: color-coded optical fibers inside a central PBT loose tube, protected by water-blocking yarn, surrounded by dielectric glass yarn reinforcement, with a rip cord for sheath opening, and finished with a black UV-resistant outdoor PE jacket. The construction is fully non-metallic and suitable for installations requiring dielectric cable design.
| Parameter | Specification |
| Fiber Type | Single Mode OS2, ITU-T G.652.D standard. G.657.A1 / G.657.A2 available as approved project options. |
| Fiber Count | Typical range 2F to 24F. Common counts: 2F, 4F, 6F, 8F, 12F and 24F. |
| Loose Tube | Single central PBT loose tube, dry-core or jelly-filled according to order, sized according to fiber count. |
| Tube Structure | Compact central loose tube design for outdoor and distribution applications. |
| Reinforcement | Dielectric glass yarn reinforcement surrounding the central tube to provide mechanical strength without metallic components. |
| Water Blocking | Water-blocking yarn and/or dry-core material to prevent longitudinal water ingress. |
| Rip Cord | Integrated rip cord for controlled jacket opening during installation. |
| Armor | No metallic armor. Mechanical protection is achieved by dielectric glass yarn reinforcement. |
| Outer Jacket | Black virgin HDPE / MDPE PE outer jacket, UV-resistant, weather-resistant, outdoor grade. Recycled jacket material is not permitted. |
| Cable Identification | Sequential length marking and PLANET / cable-type printing according to approved production artwork. |
| Part Number | Description |
| PL-GYFXTY-xxS2 | Outdoor Fiber Optic Cable Single Mode OS2 |
| PL-GYFXTY-xxM3 | Outdoor Fiber Optic Cable Multi Mode OM3 |
| PL-GYFXTY-xxM4 | Outdoor Fiber Optic Cable Multi Mode OM4 |
| PL-GYFXTY-xxM5 | Outdoor Fiber Optic Cable Multi Mode OM5 |
