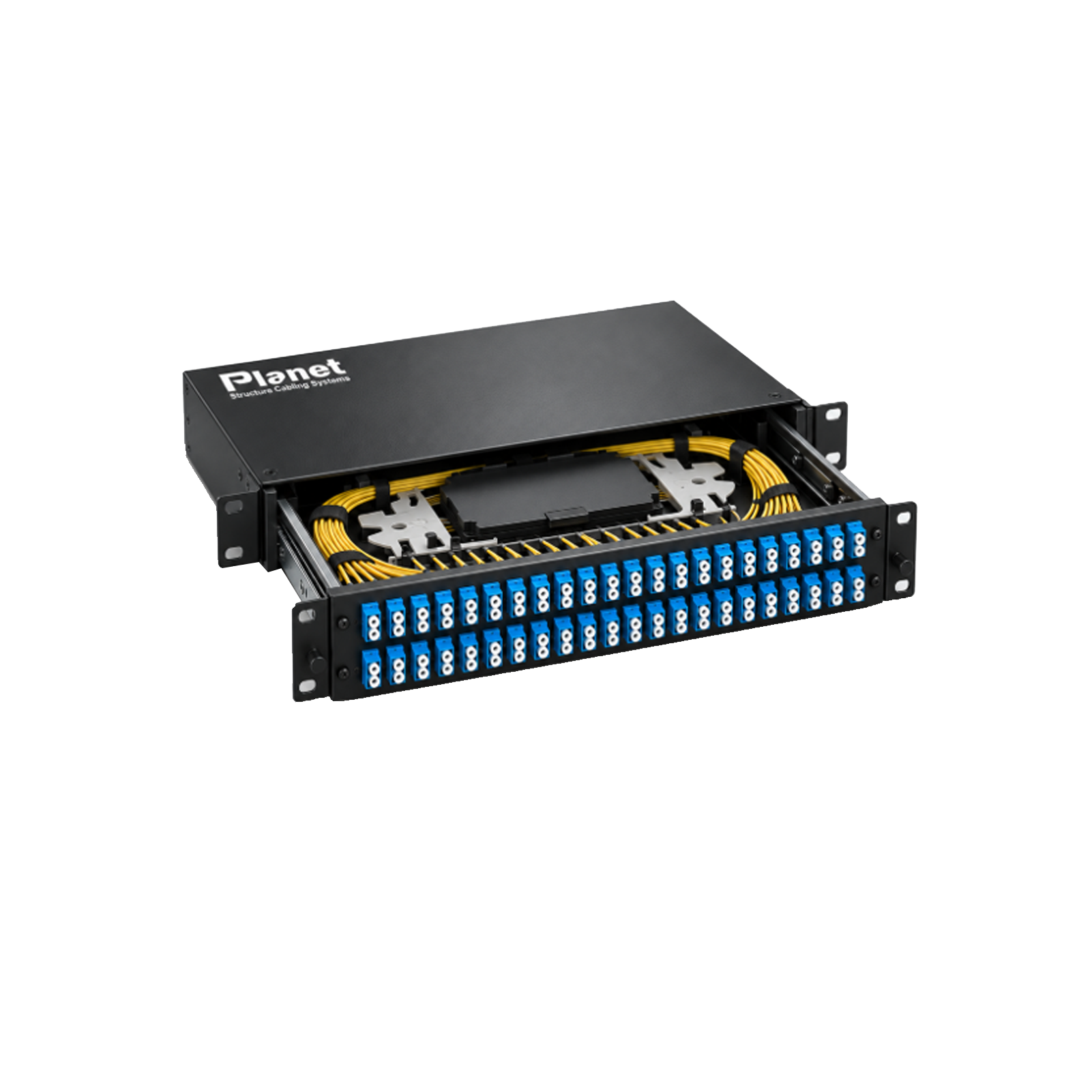

LC, Duplex / SC, Simplex Patch Panel, Sliding Type, 48 Port 2U
Features:
- 19-inch, 2U high-density sliding enclosure with robust cold-rolled steel construction.
- Up to 96 fiber ports; typical LC configuration uses 48 × LC Duplex adapter positions.
- Smooth pull-out drawer with travel stop for front-access installation and maintenance.
- Modular adapter plates support LC and SC formats; UPC or APC as selected.
- Internal splice-tray, routing-ring and strain-relief system maintains ≥40 mm managed bend radius.
- Multiple cable-entry and tie-down points, chassis grounding, port numbering and labeling field.
• Available empty or factory-loaded for OS2, OM3, OM4 and OM5 systems.
| Form Factor | 19-inch rack mount, 2U, sliding drawer |
| Nominal Capacity | 96 fiber ports / 96 fibers |
| Typical LC Density | 48 × LC Duplex adapters = 96 fiber ports |
| Alternative Interfaces | SC Simplex / SC Duplex; density subject to selected adapter plate |
| Rack Dimensions | Approx. 482.6 mm W × 304.8 mm D × 88.9 mm H; final production drawing to govern |
| Splice Management | 4 × 24F splice trays or equivalent 96F splice-management capacity |
| Panel Mechanism | Pull-out sliding drawer with positive travel stop and service-access position |
| Fiber Compatibility | OS2 (G.652.D / G.657.A1), OM3, OM4 and OM5 |
| Chassis Material | Cold-rolled steel, nominal ≥1.2 mm, powder-coated |
| Finish | Black, RAL 9005 or equivalent |
| Adapter Sleeve | Premium zirconia ceramic sleeve when supplied loaded |
| Insertion Loss – Loaded | ≤0.20 dB typical, ≤0.30 dB max per adapter interface |
| Return Loss – Pigtails | SM UPC ≥50 dB; SM APC ≥60 dB; MM ≥35 dB, when supplied |
| Mating Durability | ≥500 mating cycles for LC/SC interface |
| Operating Temperature | -40°C to +85°C for enclosure; loaded optical components per approved BOM |
| Humidity | 5-95% RH, non-condensing |
| Fiber Bend Radius | Managed internal routing radius ≥40 mm |
| Cable Management | Rear/side cable entry, strain relief, tie-down points and dedicated grounding point |
