LC, Duplex / SC, Simplex Patch Panel, Sliding Type, 24 Port 1U
Features:
- 19-inch, 1U rack-mount enclosure with robust cold-rolled steel construction.
- Modular front interface supporting LC and SC adapter configurations.
- Optimized fiber routing with ≥40 mm managed bend radius and protected splice storage.
- Rear/side cable entry, strain relief, cable clamping and dedicated grounding point.
- Numbered ports, labeling field, dust protection and removable service cover.

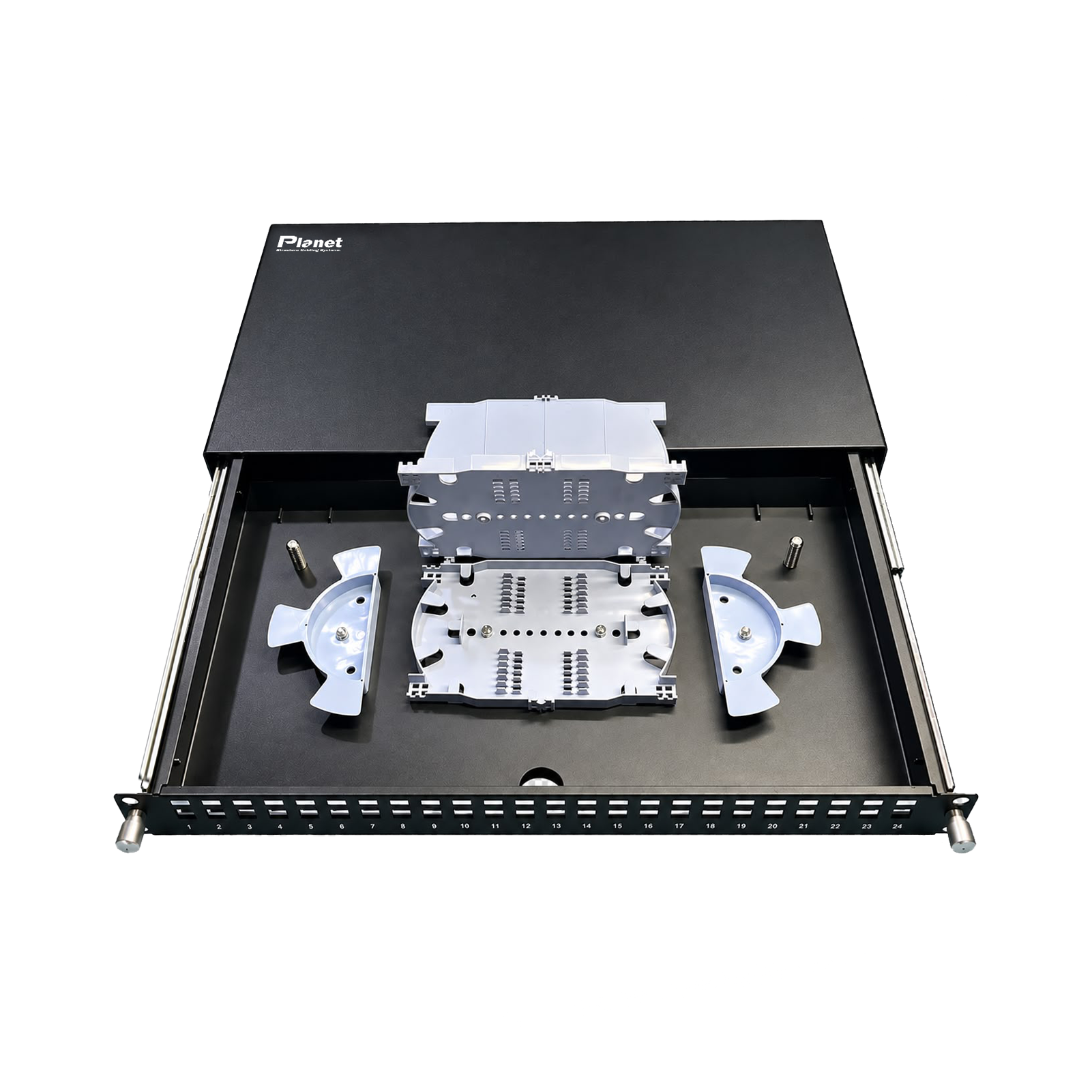

• Sliding drawer provides easier front maintenance and splice access without removing the chassis from the rack.
| Form Factor | 19-inch rack mount, 1U |
| Panel Mechanism | Pull-out sliding drawer with travel stop |
| Fiber Capacity | 24 fibers nominal; configurable for LC/SC front plates |
| Splice Management | 2 × 12F splice trays or equivalent 24F management |
| Adapter Compatibility | LC Duplex / SC Simplex / SC Duplex; UPC or APC as configured |
| Fiber Compatibility | OS2, OM3, OM4 and OM5 |
| Chassis Material | Cold-rolled steel (SPCC), ≥1.2 mm, powder-coated |
| Finish | Black, RAL 9005 or equivalent |
| Adapter Sleeve | Premium zirconia ceramic sleeve when supplied loaded |
| Adapter Insertion Loss | ≤0.20 dB typical, ≤0.30 dB max (loaded configuration) |
| Return Loss – Pigtails | SM UPC ≥50 dB; SM APC ≥60 dB; MM ≥35 dB (when supplied) |
| Mating Durability | ≥500 cycles for LC/SC adapter interface |
| Operating Environment | -20°C to +70°C; 5-95% RH, non-condensing |
| Fiber Bend Radius | Managed radius ≥40 mm inside the enclosure |
