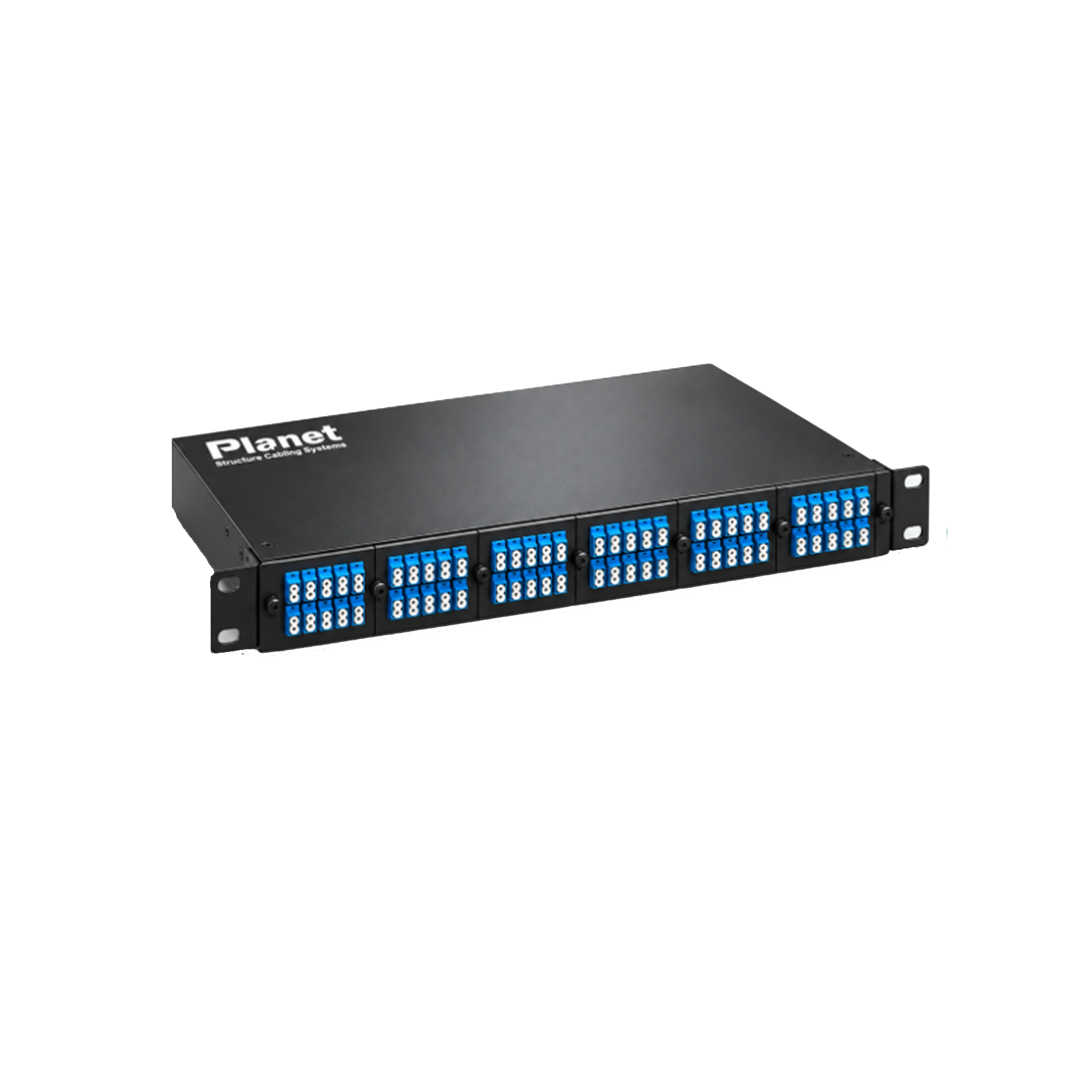

LC, Duplex / SC, Simplex Patch Panel, Fixed Type, 48 Port 1U
Features:
- 1U high-density 19-inch rack-mount chassis with six individually serviceable module positions.
- 96-fiber configuration: 4 × 24F LC modules; 144-fiber configuration: 6 × 24F LC modules.
- LC Duplex front interface with premium zirconia ceramic alignment sleeves; LC/UPC or LC/APC as selected.
- Front-removable modular cassettes/adapter modules for fast moves, adds, changes and maintenance.
- Supports splice-loaded modules or pre-terminated trunk cassettes; MPO/MTP rear interface available as a project option.
- Compatible with OS2, OM3, OM4 and OM5 systems; bend-insensitive fiber components available where required.
- Integrated rear/side cable entry, strain relief, tie-down points, grounding point, dust protection and clear port labeling.
- Protected internal routing designed to maintain ≥40 mm fiber-management radius unless the cable manufacturer requires more.
| Form Factor | 19-inch rack mount, 1U, high-density modular chassis |
| Maximum Capacity | 144 fibers / 72 × LC Duplex front connections |
| 96F Configuration | 4 × 24F LC modules = 96 fibers / 48 × LC Duplex |
| 144F Configuration | 6 × 24F LC modules = 144 fibers / 72 × LC Duplex |
| Module Density | 24 fibers per module; front-removable / individually serviceable |
| Front Interface | LC Duplex; LC/UPC or LC/APC; premium zirconia ceramic sleeve |
| Rear Architecture | Splice/pigtail module or pre-terminated trunk cassette; MPO/MTP rear option by project configuration |
| Fiber Compatibility | OS2 (G.652.D / G.657.A1), OM3, OM4 and OM5 |
| Chassis Material | Cold-rolled steel, nominal ≥1.2 mm, precision formed |
| Finish | Black powder coating, RAL 9005 or equivalent |
| Loaded Insertion Loss | ≤0.20 dB typical, ≤0.30 dB max per mated LC connection, subject to approved loaded BOM |
| Return Loss – Loaded | SM UPC ≥50 dB; SM APC ≥60 dB; MM ≥35 dB, when supplied with qualified pigtails/connectors |
| Mating Durability | ≥500 mating cycles for LC interface |
| Operating Temperature | -40°C to +75°C for passive chassis; loaded optical components per approved BOM |
| Relative Humidity | 5-95% RH, non-condensing |
| Fiber Bend Management | Internal routing target ≥40 mm radius and never below cable/fiber manufacturer requirement |
| Cable Management | Rear/side entry, strain relief, tie-down points, routing rings and dedicated grounding point |
| Nominal Dimensions | Approx. 482.6 mm W × 300 mm D × 44.45 mm H; final production drawing governs |
