Indoor-Outdoor GJPFJH Tight-Buffered Distribution
PLANET GJPFJH is an indoor/outdoor tight-buffered distribution cable intended for flexible routing, direct connectorization and building-distribution applications. The cable combines color-coded 900 μm tight-buffered fibers with aramid yarn reinforcement and a UV-resistant LSZH jacket suitable for indoor/outdoor transition.

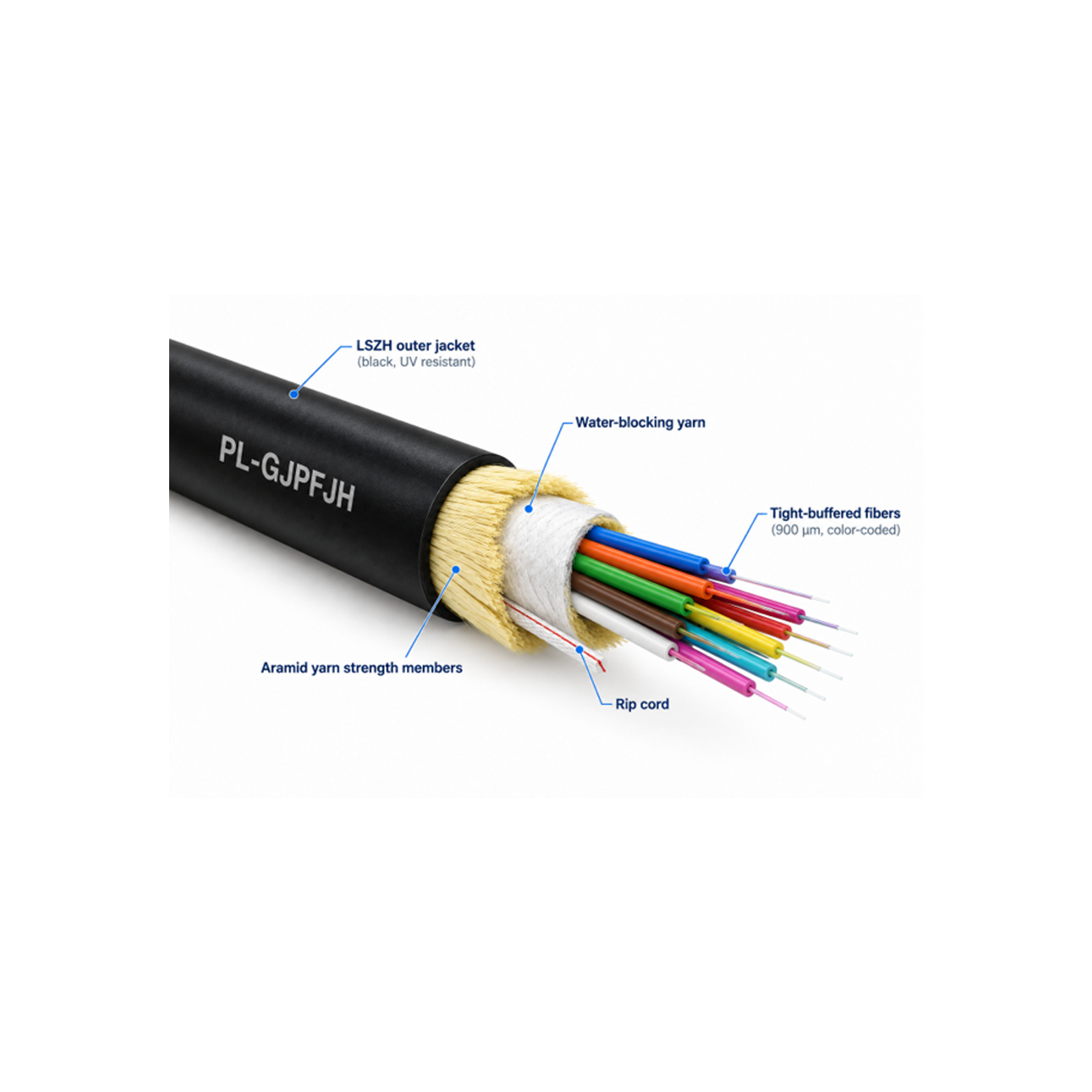

Typical construction: multiple color-coded 900 μm tight-buffered fibers grouped within water-blocking yarn, protected by aramid yarn strength members and rip cord, all enclosed within a black UV-resistant LSZH outer jacket.
| Parameter | Specification |
| Fiber Type | Single Mode G.657.A2 standard for superior bend performance. G.652.D, OM3 and OM4 versions may be supplied upon approved project request. |
| Fiber Count | Typical range 4F to 24F. Common counts: 4F, 6F, 8F, 12F and 24F. |
| Fiber Unit | 900 μm tight-buffered, color-coded optical fibers. |
| Strength Members | Aramid yarn strength members for tensile support and flexibility. |
| Water Blocking | Water-blocking yarn / dry-core elements for indoor/outdoor transition use. |
| Rip Cord | Integrated rip cord for controlled sheath opening. |
| Outer Jacket | Black UV-resistant LSZH outer jacket, halogen-free and flame-retardant. Virgin jacket material only. |
| Cable Identification | Sequential length marking and PLANET / cable-type printing according to approved production artwork. |
| Part Number | Description |
| PL- GJPFJH-xxS2 | Indoor/Outdoor Fiber Optic Cable Single Mode OS2 |
| PL- GJPFJH-xxM3 | Indoor/Outdoor Fiber Optic Cable Multi Mode OM3 |
| PL- GJPFJH-xxM4 | Indoor/Outdoor Fiber Optic Cable Multi Mode OM4 |
| PL- GJPFJH-xxM5 | Indoor/Outdoor Fiber Optic Cable Multi Mode OM5 |
