Indoor-Outdoor GJBFJH Breakout
PLANET GJBFJH is an indoor/outdoor breakout fiber optic cable designed for direct termination and rugged distribution applications. The cable contains individual simplex breakout sub-units inside an overall jacket, allowing easy handling and direct connectorization without a separate fan-out kit in many applications.

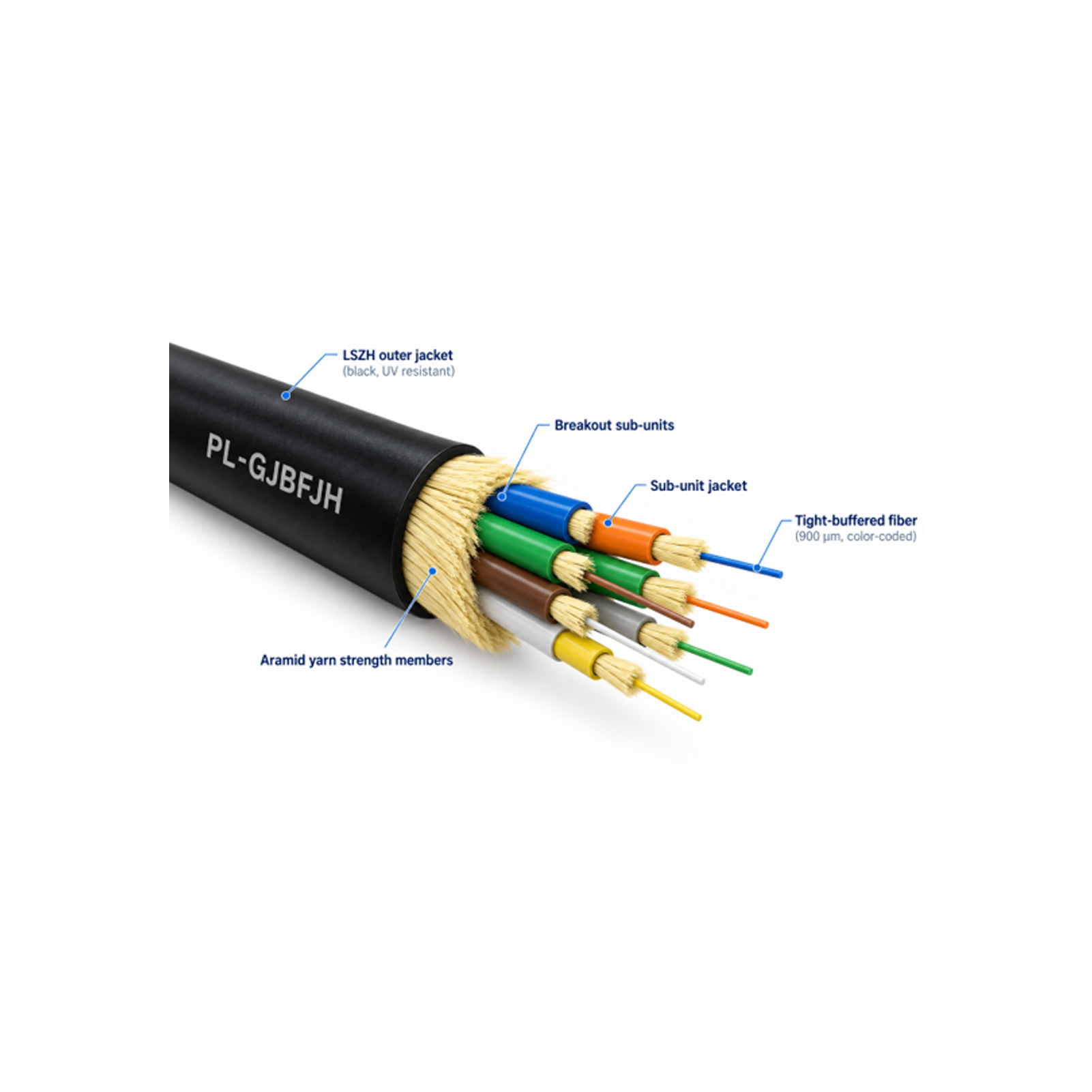

Typical construction: multiple color-coded breakout sub-units, each containing a tight-buffered fiber and aramid reinforcement, grouped under an overall black UV-resistant LSZH jacket with additional aramid yarn support.
| Parameter | Specification |
| Fiber Type | OS2 Single Mode G.657.A2 standard for superior bend performance. G.652.D available as an approved single-mode option. OM3 / OM4 / OM5 50/125 µm multimode fibers are available upon approved project request. |
| Fiber Count | Typical range 2F to 24F. Common counts: 2F, 4F, 6F, 8F, 12F and 24F. |
| Breakout Sub-Units | Individual simplex sub-units under the overall outer jacket. |
| Sub-Unit Structure | Each sub-unit includes 900 μm tight-buffered fiber, aramid yarn and colored sub-unit jacket. |
| Overall Strength Members | Aramid yarn strength members under the overall outer jacket. |
| Outer Jacket | Black UV-resistant LSZH outer jacket, halogen-free and flame-retardant. Virgin jacket material only. |
| Identification | Color-coded sub-units with sequential length marking and PLANET / cable-type printing according to approved production artwork. |
| Part Number | Description |
| PL- GJBFJH-xxS2 | Indoor/Outdoor Fiber Optic Cable Single Mode OS2 |
| PL- GJBFJH-xxM3 | Indoor/Outdoor Fiber Optic Cable Multi Mode OM3 |
| PL- GJBFJH-xxM4 | Indoor/Outdoor Fiber Optic Cable Multi Mode OM4 |
| PL- GJBFJH-xxM5 | Indoor/Outdoor Fiber Optic Cable Multi Mode OM5 |
