Indoor/Outdoor Dielectric Armored Fiber Optic Cable
OS2 Single Mode Indoor/Outdoor Dielectric Armored Fiber Optic Cable

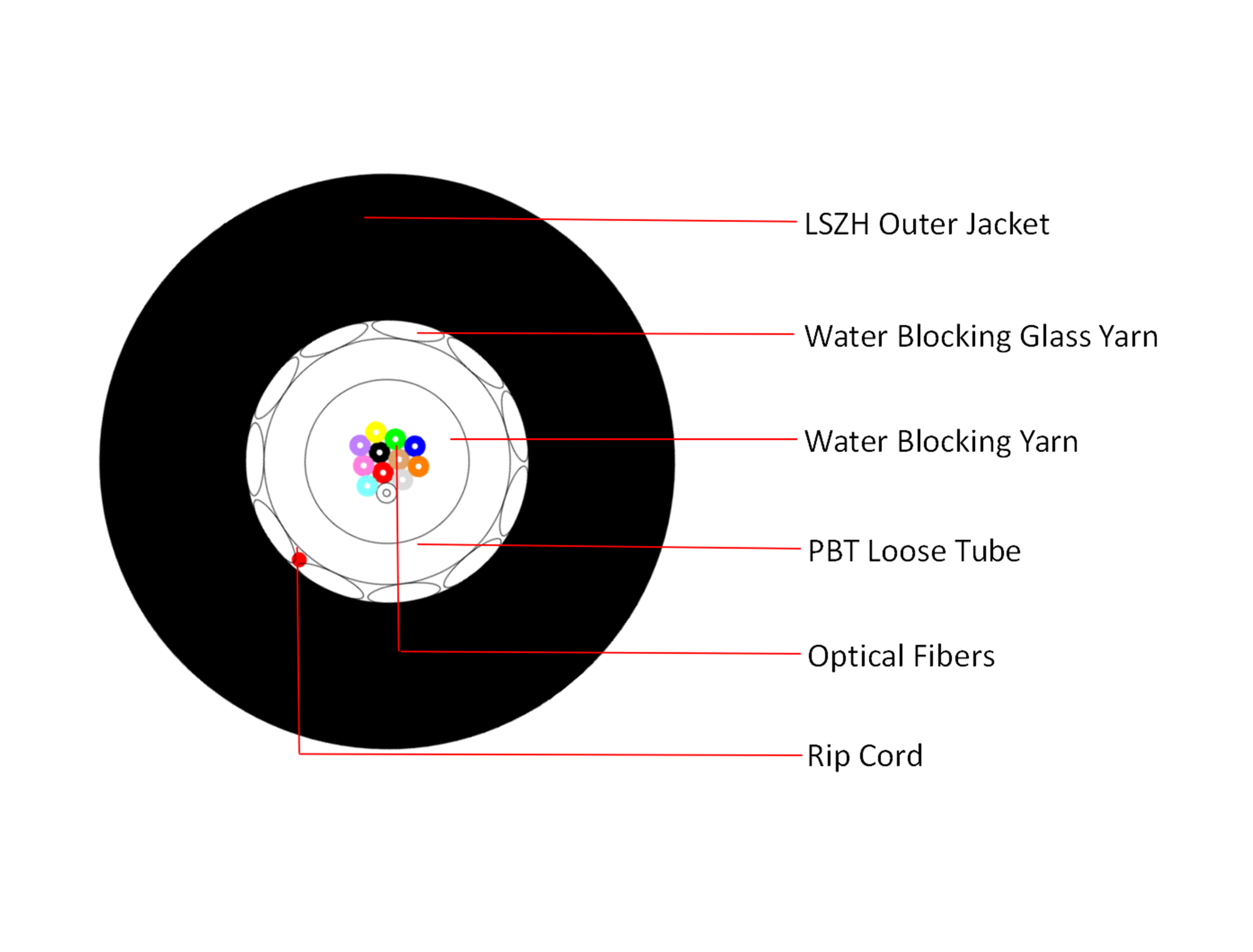

Central Loose Tube Structure
Cable Construction: Central Loose Tube
Product Overview:
PLANET OS2 Single Mode Dielectric Armored Fiber Optic Cable is designed for indoor/outdoor backbone applications requiring high mechanical protection and reliable long-distance transmission. The cable features a fully dielectric Central Loose Tube (PBT) construction with glass yarn reinforcement, water-blocking protection, and LSZH UV-resistant jacket, providing excellent resistance against moisture, mechanical stress, and environmental conditions.
Technical Specifications:
| Parameter | Specification |
| Fiber Type | OS2 Single Mode Fiber (ITU-T G.652.D) |
| Fiber Count | 2 / 4 / 6 / 8 / 12 / 24 Fibers |
| Fiber Performance | ≤0.35 dB/km @1310 nm / ≤0.25 dB/km @1550 nm |
| Operating Wavelength | 1310 nm / 1550 nm |
| Construction | Central Loose Tube |
| Tube Material | PBT |
| Strength Member | Dielectric Glass Yarn |
| Armor | Dielectric Glass Yarn Reinforcement |
| Jacket Material | LSZH UV-Resistant Black Jacket |
| Cable Diameter | Approx. 6.6–7.0 mm (Depending on Fiber Count) |
| Cable Weight | Approx. 50–80 kg/km (Depending on Fiber Count) |
| Maximum Tensile Strength | 1000 N |
| Crush Resistance | IEC 60794 Compliant |
| Operating Temperature | -40°C to +70°C |
| Installation Temperature | -10°C to +60°C |
| Minimum Bending Radius | 10D Static / 20D Dynamic |
| P/N | Description |
| PL-FOS2CUTA-02 | 2 Fiber OS2 Single Mode Central Loose Tube Dielectric Armored Indoor/Outdoor Cable |
| PL-FOS2CUTA-04 | 4 Fiber OS2 Single Mode Central Loose Tube Dielectric Armored Indoor/Outdoor Cable |
| PL-FOS2CUTA-06 | 6 Fiber OS2 Single Mode Central Loose Tube Dielectric Armored Indoor/Outdoor Cable |
| PL-FOS2CUTA-08 | 8 Fiber OS2 Single Mode Central Loose Tube Dielectric Armored Indoor/Outdoor Cable |
| PL-FOS2CUTA-12 | 12 Fiber OS2 Single Mode Central Loose Tube Dielectric Armored Indoor/Outdoor Cable |
| PL-FOS2CUTA-24 | 24 Fiber OS2 Single Mode Central Loose Tube Dielectric Armored Indoor/Outdoor Cable |
