Indoor GJFJV Distribution Cable

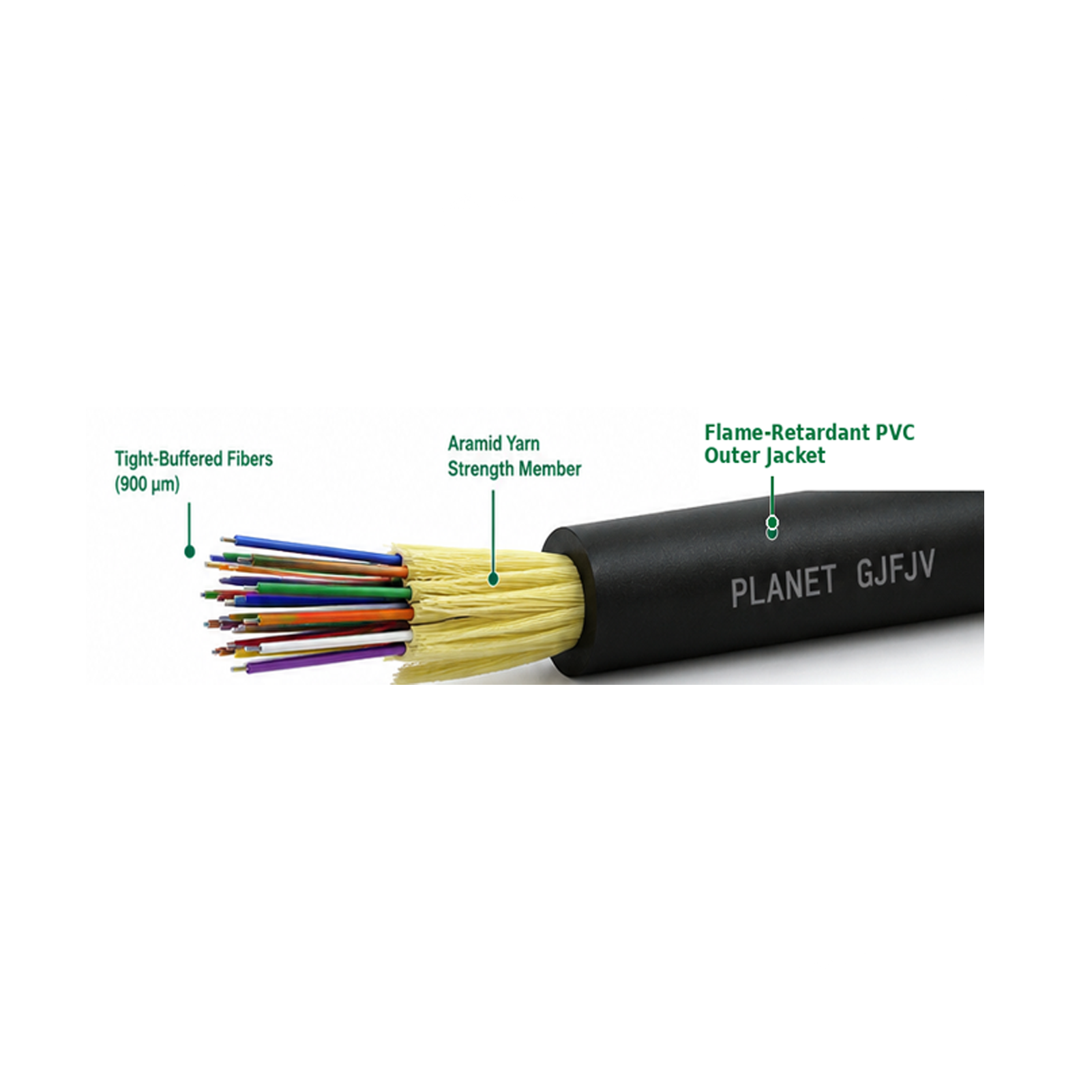

PLANET GJFJV is an indoor tight-buffered distribution fiber optic cable designed for building backbone, telecom-room, riser, horizontal/vertical distribution, data-center and equipment-interconnection applications. The cable combines color-coded 900 µm tight-buffered fibers with aramid yarn tensile reinforcement for flexible handling and direct termination.
The standard PLANET GJFJV construction uses a high-grade flame-retardant PVC outer jacket. OS2 G.652.D is the standard single-mode fiber, while G.657.A1/A2 and OM3 / OM4 / OM5 fiber options are available for approved project requirements
| Parameter | Specification |
| Fiber Type | OS2 G.652.D standard. G.657.A1 / G.657.A2 approved single-mode options. OM3 / OM4 / OM5 50/125 µm multimode versions available upon project request. |
| Fiber Count | Typical range 2F to 24F. Common counts: 2F, 4F, 6F, 8F, 12F and 24F. |
| Tight Buffer | 900 ± 50 µm, color coded for direct handling and termination. |
| Strength Members | Aramid yarn surrounding the tight-buffered fiber bundle; fully dielectric tensile reinforcement. |
| Outer Jacket | Premium flame-retardant PVC indoor outer jacket; virgin compound only. Standard color yellow for OS2 unless otherwise specified. |
| Classification | ALL-DIELECTRIC / NON-METALLIC / NON-ARMORED / INDOOR |
| Cable Identification | Sequential length marking and PLANET / GJFJV printing according to approved production artwork. |
| Part Number | Description |
| PL- GJFJV-xxS2 | Indoor Fiber Optic Cable Single Mode OS2 |
| PL- GJFJV-xxM3 | Indoor Fiber Optic Cable Multi Mode OM3 |
| PL- GJFJV-xxM4 | Indoor Fiber Optic Cable Multi Mode OM4 |
| PL- GJFJV-xxM5 | Indoor Fiber Optic Cable Multi Mode OM5 |
