Indoor GJBFJV Breakout Cable

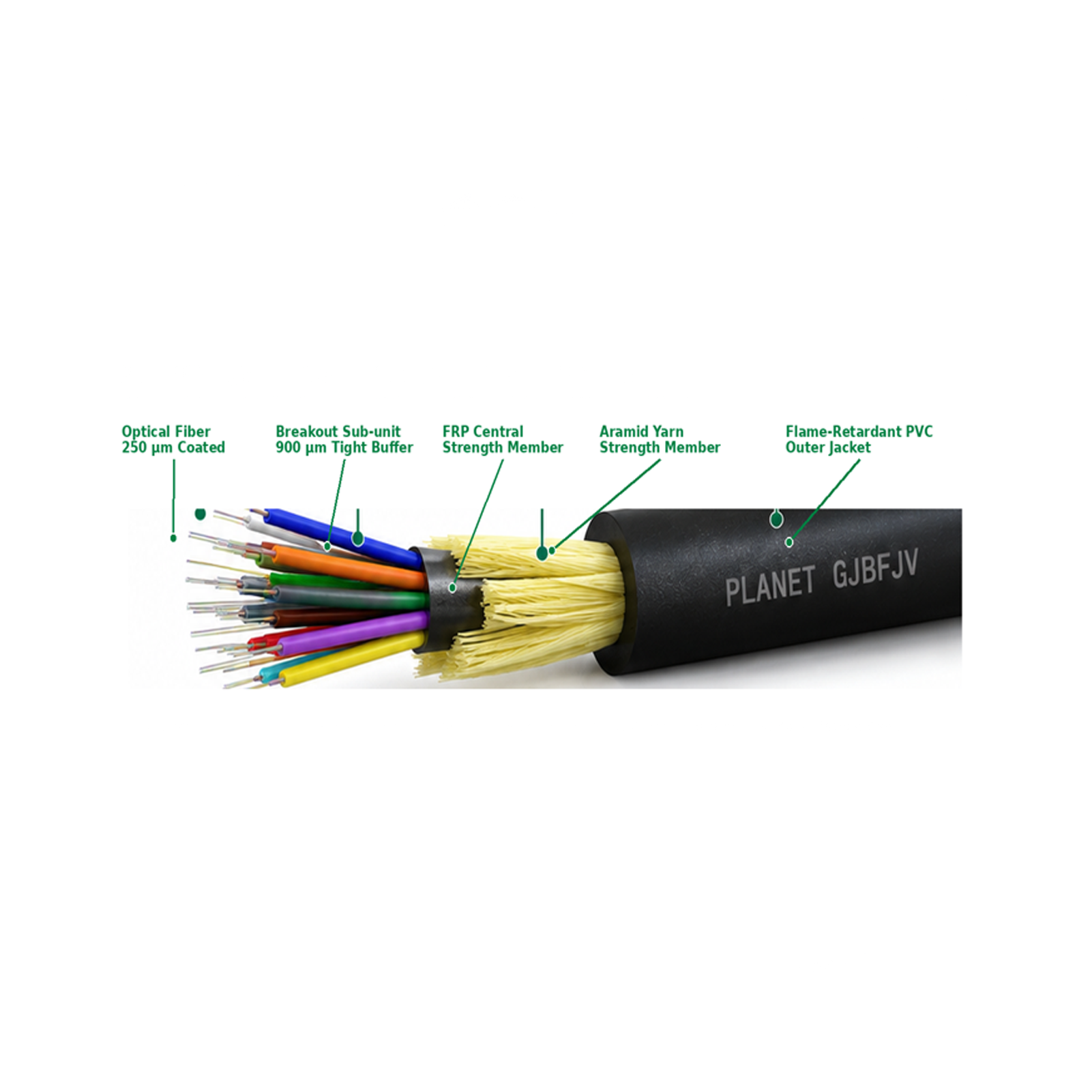

PLANET GJBFJV is an indoor breakout fiber optic cable designed for building backbone, riser, telecom-room and equipment interconnection applications. Each optical fiber is protected inside an individual breakout sub-unit with a 900 µm tight buffer and aramid yarn reinforcement. The sub-units are arranged around a non-metallic FRP central strength member and protected by a flame-retardant indoor sheath for robust handling, easy branch-out and direct termination.
OS2 G.652.D is the standard single-mode configuration. G.657.A1/A2 bend-insensitive single mode and OM3 / OM4 / OM5 50/125 µm multimode fibers are available as approved project options. Final fiber count, jacket material, color and certified flame classification shall be confirmed on the approved production datasheet.
| Parameter | Specification |
| Fiber Type | OS2 G.652.D standard; G.657.A1 / G.657.A2, OM3, OM4 and OM5 available as approved project options. |
| Fiber Count | Typical 2F to 24F. Common counts: 2F, 4F, 6F, 8F, 12F and 24F; higher counts subject to approved design. |
| Breakout Sub-unit | Individual simplex sub-unit with tight-buffered fiber, aramid yarn and colored sub-unit jacket. |
| Tight Buffer | 900 ± 50 µm, color-coded for identification and direct termination. |
| Sub-unit Strength Member | Aramid yarn surrounding the tight-buffered fiber inside each breakout sub-unit. |
| Central Strength Member | FRP (Fiber Reinforced Plastic), non-metallic / all-dielectric. |
| Outer Jacket | Flame-retardant indoor PVC standard. LSZH outer sheath available as approved project option using virgin compound. |
| Cable Identification | Sequential meter marking and PLANET GJBFJV / fiber count / fiber type / production information according to approved artwork. |
| Part Number | Description |
| PL- GJBFJV-xxS2 | Indoor Fiber Optic Cable Single Mode OS2 |
| PL- GJBFJV-xxM3 | Indoor Fiber Optic Cable Multi Mode OM3 |
| PL- GJBFJV-xxM4 | Indoor Fiber Optic Cable Multi Mode OM4 |
| PL- GJBFJV-xxM5 | Indoor Fiber Optic Cable Multi Mode OM5 |
