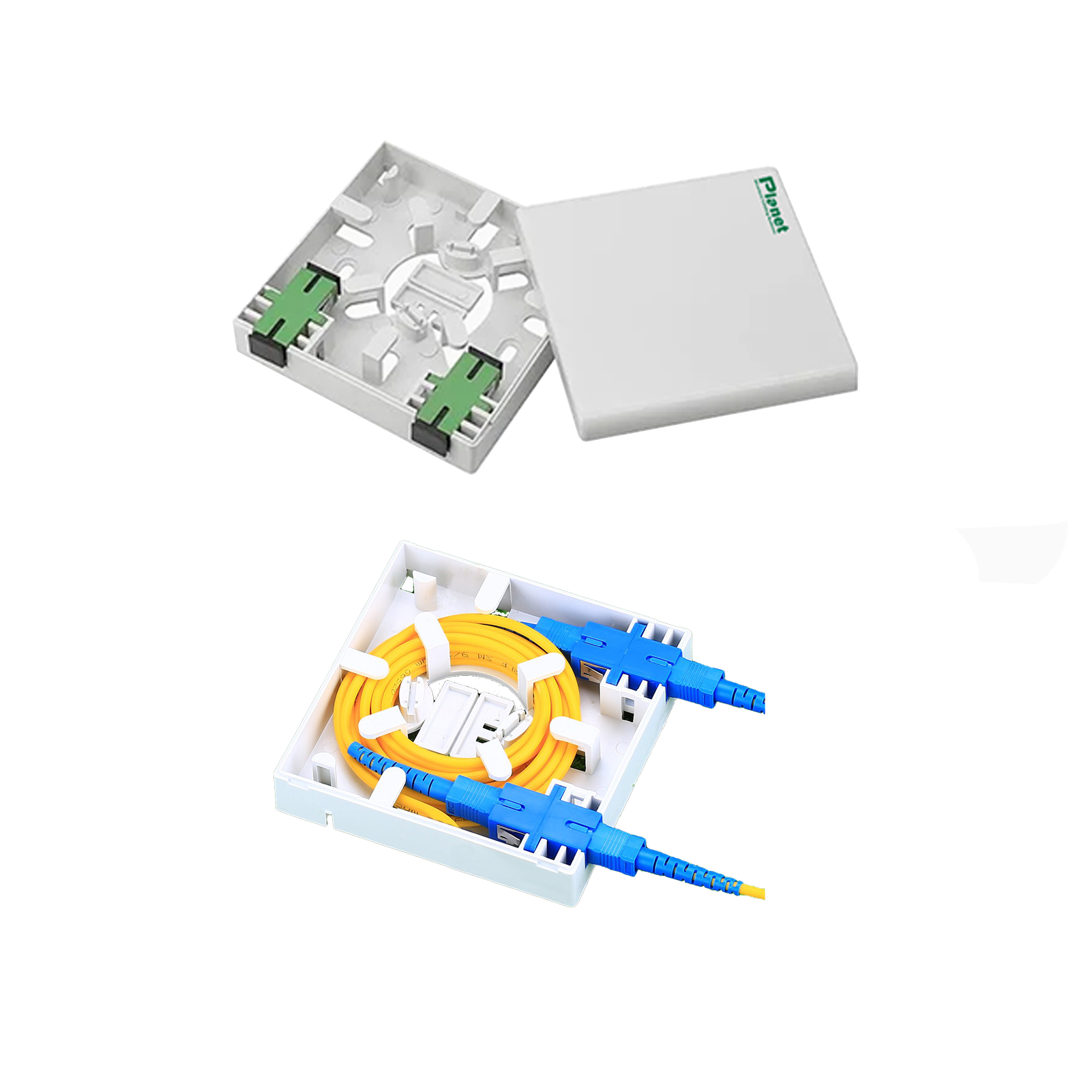

FTTD Wall Box
Product Description
Compact wall-mount fiber termination box for FTTD/FTTH subscriber outlets. The enclosure integrates fiber routing, splice protection and two shuttered adapter positions in a low-profile 86 × 86 mm housing, providing a neat and serviceable termination point for residential and commercial fiber networks.
- 2-fiber termination with up to 2 fusion splices
- Two shuttered optical outlets for user-side protection
- Integrated splice sleeve holder and fiber routing management
- Surface wall-mount design for FTTH / FTTD endpoints
| Parameter | Technical Parameters |
| Product type | Wall-mount fiber termination / FTTD wall box |
| Maximum single fiber count | 2 |
| Maximum fusion splices | 2 |
| Number of shuttered outlets | 2 |
| Adapter format | SC simplex; SC/UPC or SC/APC by configuration |
| Cable entry points | 1 main entry point |
| Fiber management | Integrated routing guides, retention tabs and splice-holder |
| Recommended fiber | OS2 single-mode; G.657.A1 / G.657.A2 preferred for compact routing |
| Dimensions (H × W × D) | 86 × 86 × 25 mm |
| Housing material / colour | ABS / White |
| RoHS | Compliant |
