Faceplate 1/2 Port 86mm Type 90°

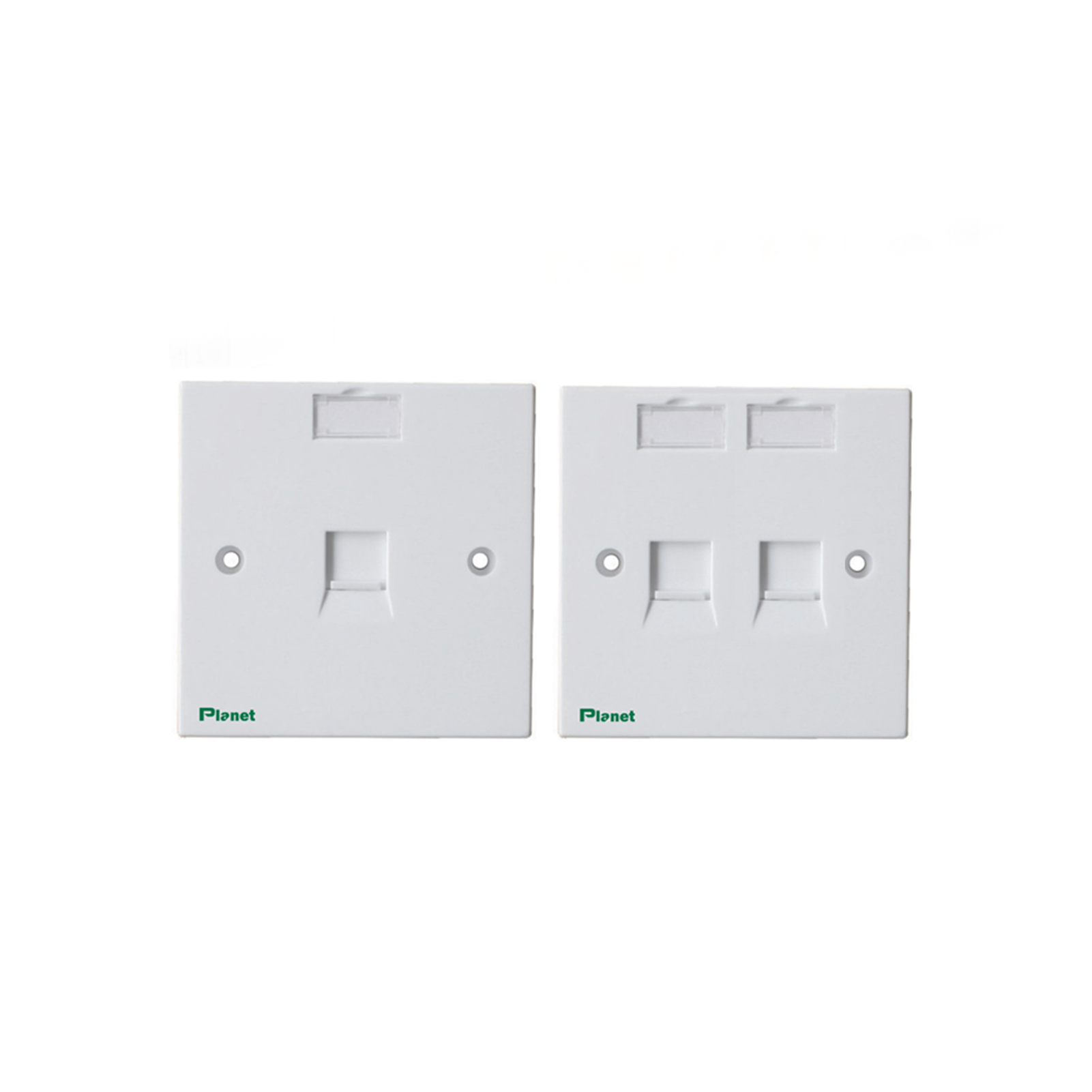

PLANET PL-FP1P9 / PL-FP2P9 are 90° Euro-style work-area faceplates for mounting compatible modular RJ11 and RJ45 inserts in a standard 86 × 86 mm format. PL-FP1P9 provides one outlet position and PL-FP2P9 provides two, offering a clean and compact termination point for structured voice and data cabling installations.
The supplied manufacturer datasheet specifies ABS material with UL 94 V-0 flammability classification, an 86 × 86 mm plate size, -10°C to +60°C operating temperature, a 90° Euro-style arrangement, and RJ11/RJ45 compatibility. The faceplate is a passive mechanical mounting accessory and therefore must not be assigned Ethernet Category, frequency, insertion-loss, NEXT or PoE ratings; these are properties of the installed jack and complete cabling system.
| Parameter | Specification |
| Product Type | 90° Euro-style faceplate for modular voice/data outlets |
| Part Numbers | PL-FP1P9 (1-port) / PL-FP2P9 (2-port) |
| Overall Plate Size | 86 × 86 mm |
| Nominal Plate Depth | 10 mm per supplied manufacturer drawing |
| Central Feature Envelope | 50 × 50 mm per supplied manufacturer drawing |
| Faceplate Type | 90° Euro style |
| Material | ABS; UL 94 V-0 flammability classification specified by manufacturer |
| Module Compatibility | RJ11 / RJ45 compatible modular inserts subject to dimensional fit |
| Port Identification | Front label / identification provision |
| Mounting | Two front fixing points shown in the manufacturer drawing |
Faceplate 86mm Type 90°
| Part Number | Description |

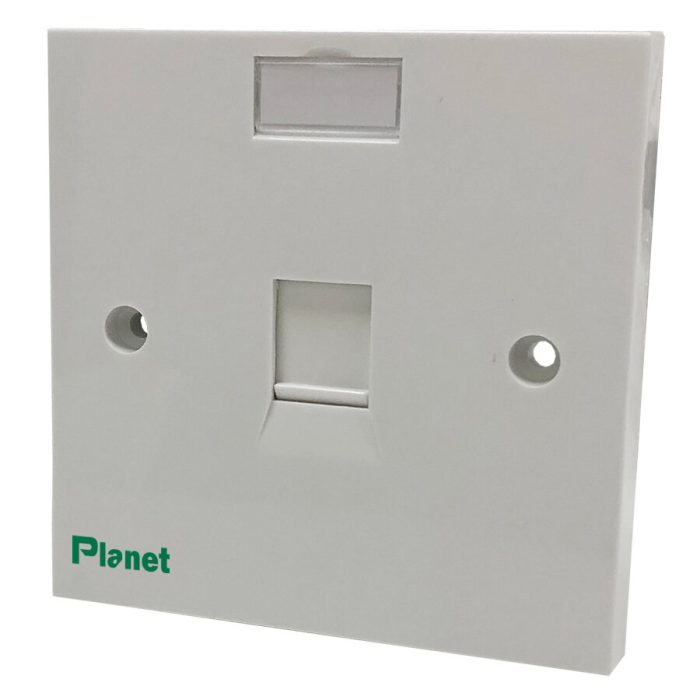

| PL-FP1P9 | Faceplate 1 Port 86mm Type 90° |

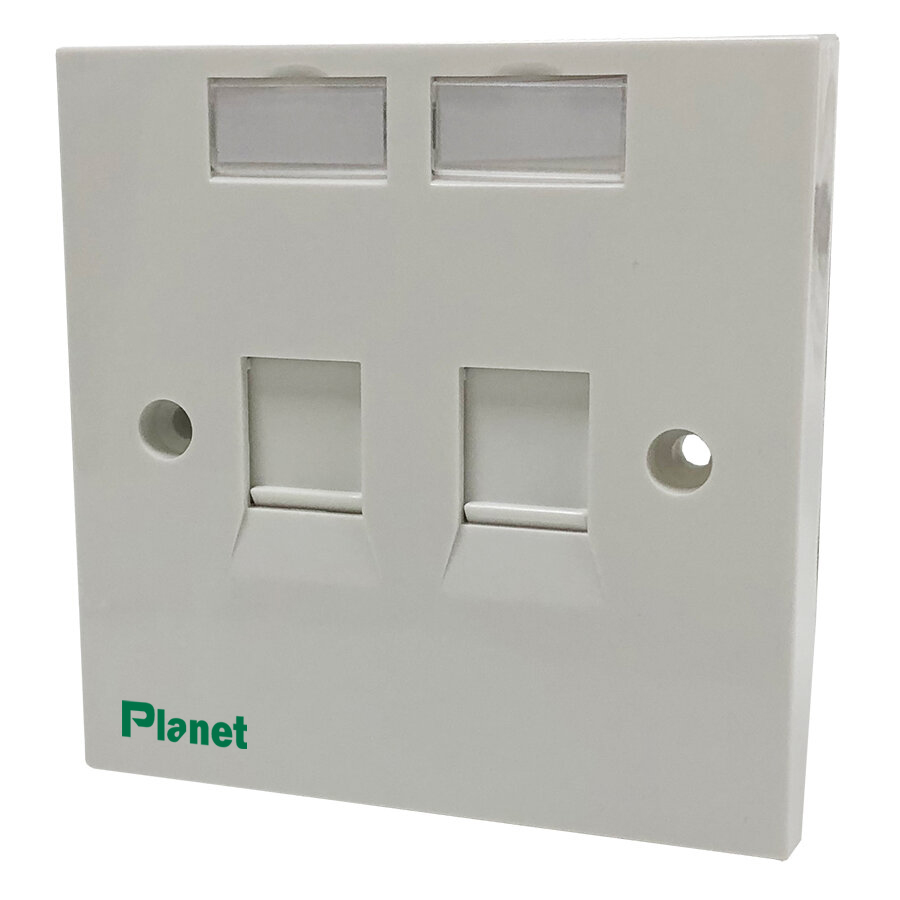

| PL-FP2P9 | Faceplate 2 Port 86mm Type 90° |
