Faceplate 1/2 Port 86mm Type 45°
The material of keystone jack plate is generally ABS/PC, as well as metal in some condition. The external dimensions of the faceplate conform to the international standard 86*86MM. The embedded faceplate is easy to install and easy to identify data and voice port with embedded chart and label position on surface.
Faceplate is suitable for multi-type both Rj45 and Rj11 module installation, flexible for the workspace subsystem. There is a transparent presentation board inside a blank card on the above of exit port.
- It is working with UK shutter
- Made from high-impact ABS for long years use
- Perfectly blends into the decor of your home or office
- Protect and hide your network connection
- Accept all keystone jack inserts
- Standard 110 type IDC termination
| Material | ABS 94V-0 |
| The plate size | 86*86 mm |
| Operating Temperature | -10°C to +60°C |
| Face Plate Type | 45D Euro style |
| Plug /Jack Compatibility | RJ11, RJ45 |
| UL Flammability | UL-94V0 |

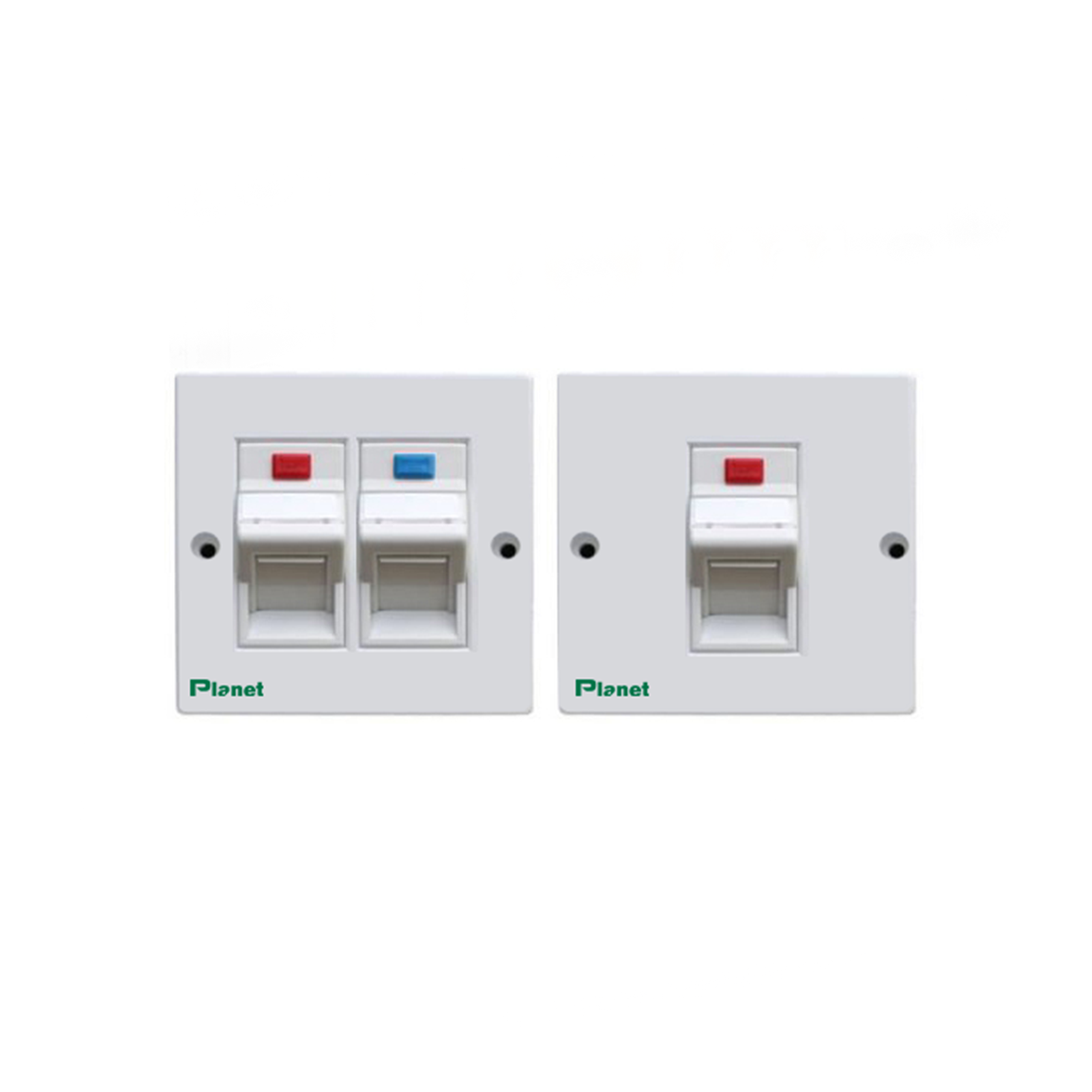

Faceplate 86mm Type 45°
| Part Number | Description |

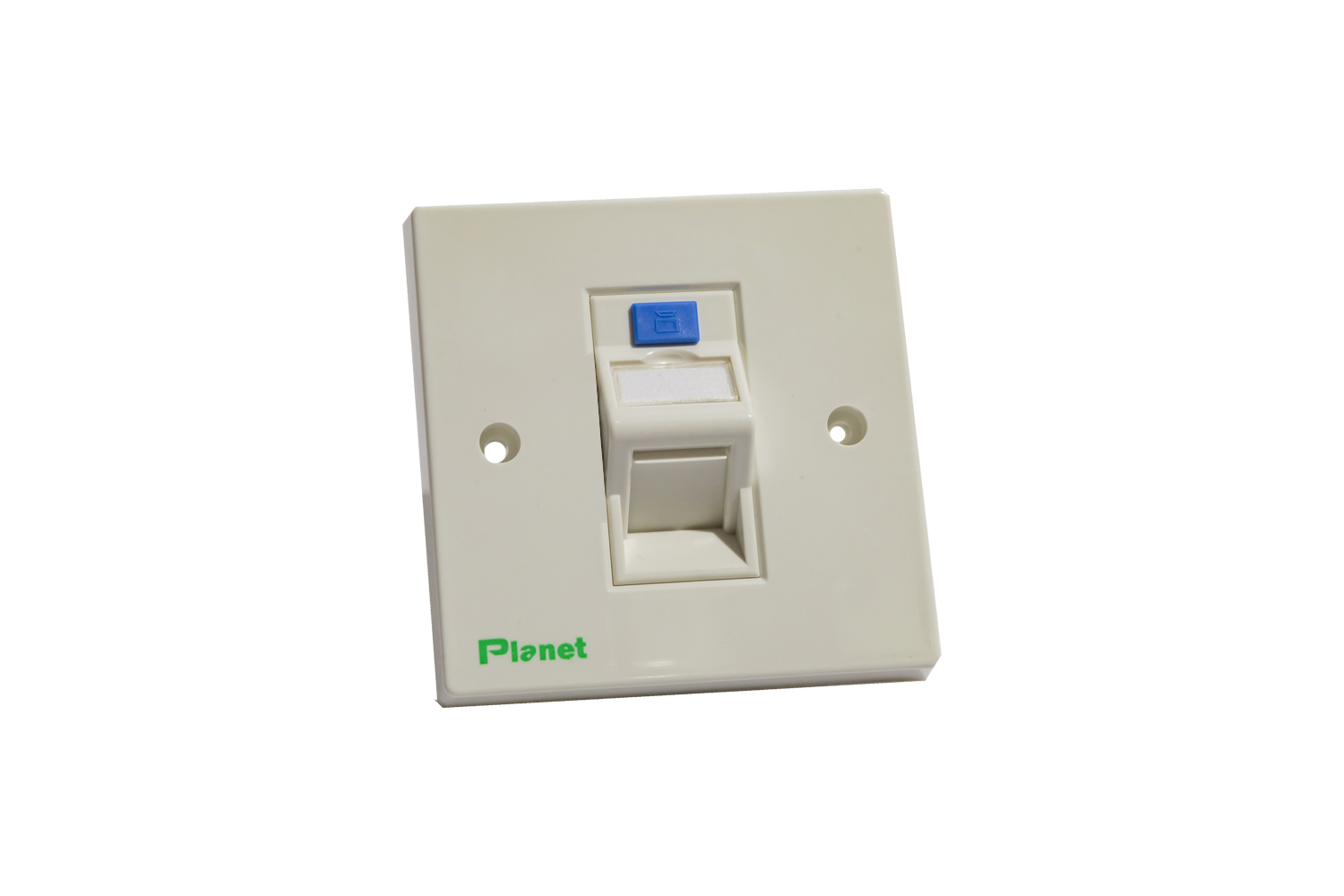

| PL-FP1P4 | Faceplate 1 Port 86mm Type 45° |

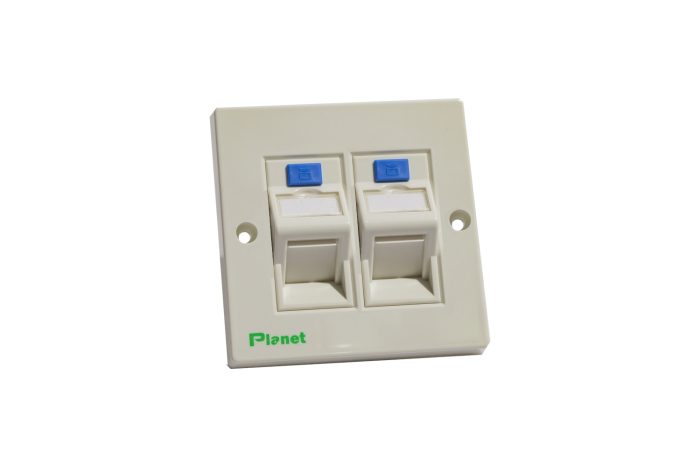

| PL-FP2P4 | Faceplate 2 Port 86mm Type 45° |
