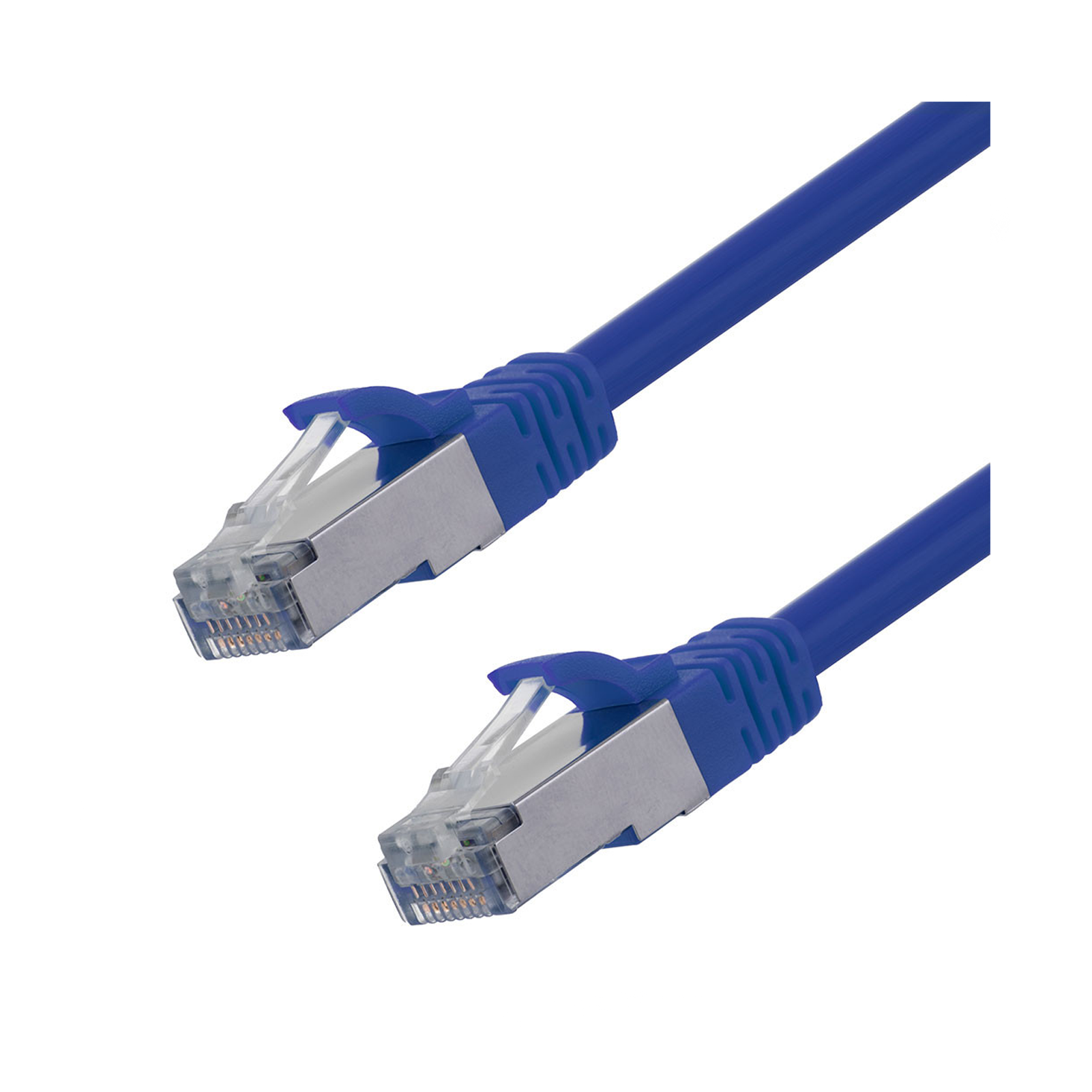

Category 7 S/FTP Patch Cord
Planet Category 7 S/FTP system patch cord is designed for the high end project use.
Patch cords are high performance S/FTP components available in broad range of lengths and easy-to-trace colors.
Conductor is securely mated with a patented RJ45 plug design to deliver superior electrical performance with excellent repeatability. The unique anti-snagging feature simplifies removal and replacement of patch cords.
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
| Conductor | Material / Size | Bare Copper / 26 AWG | |
| Insulation | Material | HDPE | |
| Diameter | 1.05 ± 0.06 mm | ||
| Sheath | Material | PVC | LSZH |
| Diameter | 6.4 ± 0.2 mm | 6.4 ± 0.2 mm | |
PVC Patch Cord CAT.7 SFTP:
| LENGTH | GREY | GREEN | BLUE | RED | YELLOW |
| 0.25m | PL-PC025S7GY | PL-PC025S7GR | PL-PC025S7BL | PL-PC025S7RD | PL-PC025S7YW |
| 0.5m | PL-PC05S7GY | PL-PC05S7GR | PL-PC05S7BL | PL-PC05S7RD | PL-PC05S7YW |
| 1m | PL-PC01S7GY | PL-PC01S7GR | PL-PC01S7BL | PL-PC01S7RD | PL-PC01S7YW |
| 2m | PL-PC02S7GY | PL-PC02S7GR | PL-PC02S7BL | PL-PC02S7RD | PL-PC02S7YW |
| 3m | PL-PC03S7GY | PL-PC03S7GR | PL-PC03S7BL | PL-PC03S7RD | PL-PC03S7YW |
| 5m | PL-PC05S7GY | PL-PC05S7GR | PL-PC05S7BL | PL-PC05S7RD | PL-PC05S7YW |
| 7m | PL-PC07S7GY | PL-PC07S7GR | PL-PC07S7BL | PL-PC07S7RD | PL-PC07S7YW |
| 10m | PL-PC10S7GY | PL-PC10S7GR | PL-PC10S7BL | PL-PC10S7RD | PL-PC10S7YW |
| 15m | PL-PC15S7GY | PL-PC15S7GR | PL-PC15S7BL | PL-PC15S7RD | PL-PC15S7YW |
| 20m | PL-PC20S7GY | PL-PC20S7GR | PL-PC20S7BL | PL-PC20S7RD | PL-PC20S7YW |
| 30m | PL-PC30S7GY | PL-PC30S7GR | PL-PC30S7BL | PL-PC30S7RD | PL-PC30S7YW |
| 40m | PL-PC40S7GY | PL-PC40S7GR | PL-PC40S7BL | PL-PC40S7RD | PL-PC40S7YW |
| 50m | PL-PC50S7GY | PL-PC50S7GR | PL-PC50S7BL | PL-PC50S7RD | PL-PC50S7YW |
LSZH Patch Cord CAT.7 SFTP:
| LENGTH | GREY | GREEN | BLUE | RED | YELLOW |
| 0.25m | PL-PC025SL7GY | PL-PC025SL7GR | PL-PC025SL7BL | PL-PC025SL7RD | PL-PC025SL7YW |
| 0.5m | PL-PC05SL7GY | PL-PC05SL7GR | PL-PC05SL7BL | PL-PC05SL7RD | PL-PC05SL7YW |
| 1m | PL-PC01SL7GY | PL-PC01SL7GR | PL-PC01SL7BL | PL-PC01SL7RD | PL-PC01SL7YW |
| 2m | PL-PC02SL7GY | PL-PC02SL7GR | PL-PC02SL7BL | PL-PC02SL7RD | PL-PC02SL7YW |
| 3m | PL-PC03SL7GY | PL-PC03SL7GR | PL-PC03SL7BL | PL-PC03SL7RD | PL-PC03SL7YW |
| 5m | PL-PC05SL7GY | PL-PC05SL7GR | PL-PC05SL7BL | PL-PC05SL7RD | PL-PC05SL7YW |
| 7m | PL-PC07SL7GY | PL-PC07SL7GR | PL-PC07SL7BL | PL-PC07SL7RD | PL-PC07SL7YW |
| 10m | PL-PC10SL7GY | PL-PC10SL7GR | PL-PC10SL7BL | PL-PC10SL7RD | PL-PC10SL7YW |
| 15m | PL-PC15SL7GY | PL-PC15SL7GR | PL-PC15SL7BL | PL-PC15SL7RD | PL-PC15SL7YW |
| 20m | PL-PC20SL7GY | PL-PC20SL7GR | PL-PC20SL7BL | PL-PC20SL7RD | PL-PC20SL7YW |
| 30m | PL-PC30SL7GY | PL-PC30SL7GR | PL-PC30SL7BL | PL-PC30SL7RD | PL-PC30SL7YW |
| 40m | PL-PC40SL7GY | PL-PC40SL7GR | PL-PC40SL7BL | PL-PC40SL7RD | PL-PC40SL7YW |
| 50m | PL-PC50SL7GY | PL-PC50SL7GR | PL-PC50SL7BL | PL-PC50SL7RD | PL-PC50SL7YW |
