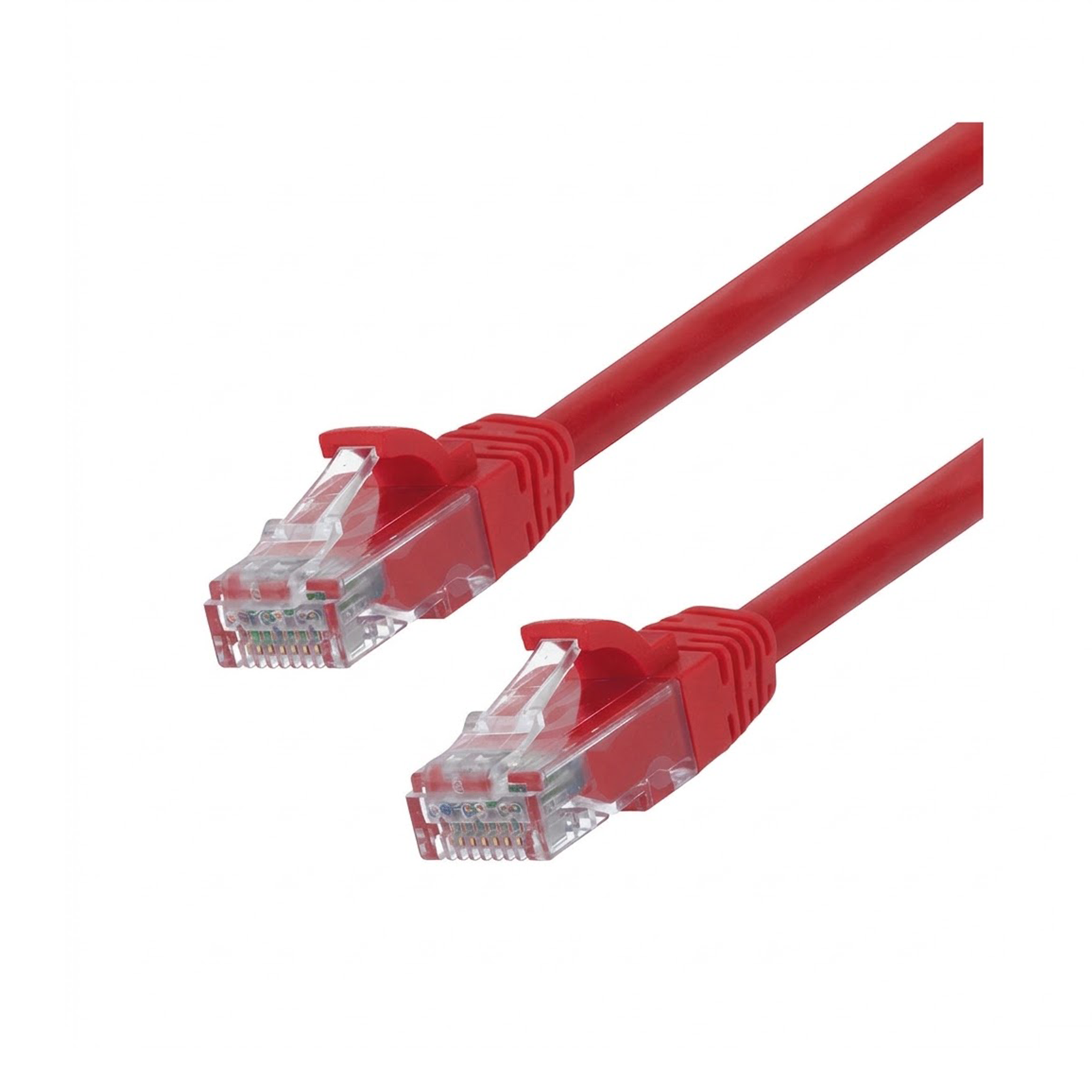

Category 6A U/UTP Patch Cord

PLANET Category 6A U/UTP Unshielded Patch Cords are engineered for high-performance 10 Gigabit Ethernet connections in structured cabling systems. Four balanced unshielded twisted pairs of stranded bare copper conductors, controlled twist rates and a non-metallic cross-web separator help control pair-to-pair and alien crosstalk while maintaining signal integrity. Designed for Category 6A / Class EA applications up to 500 MHz and 10GBASE-T channels up to 100 m when installed as part of a compliant cabling system.

Key Features:

• Category 6A U/UTP unshielded patch cord
  • Performance up to 500 MHz
  • Supports 10GBASE-T and legacy Ethernet applications
  • 24AWG stranded bare copper conductors – No CCA
  • Four balanced unshielded twisted pairs
  • No metallic shield or drain wire
  • Non-metallic cross-web separator for improved crosstalk control
  • Unshielded RJ45 8P8C modular plugs
  • 15 µin gold-plated contacts (standard); 30 µin and 50 µin available as options
  • Molded strain-relief boot
  • Supports PoE, PoE+, and PoE++ subject to compliant channel design
  • 100% continuity and wire-map tested
  • PVC standard / LSZH optional
