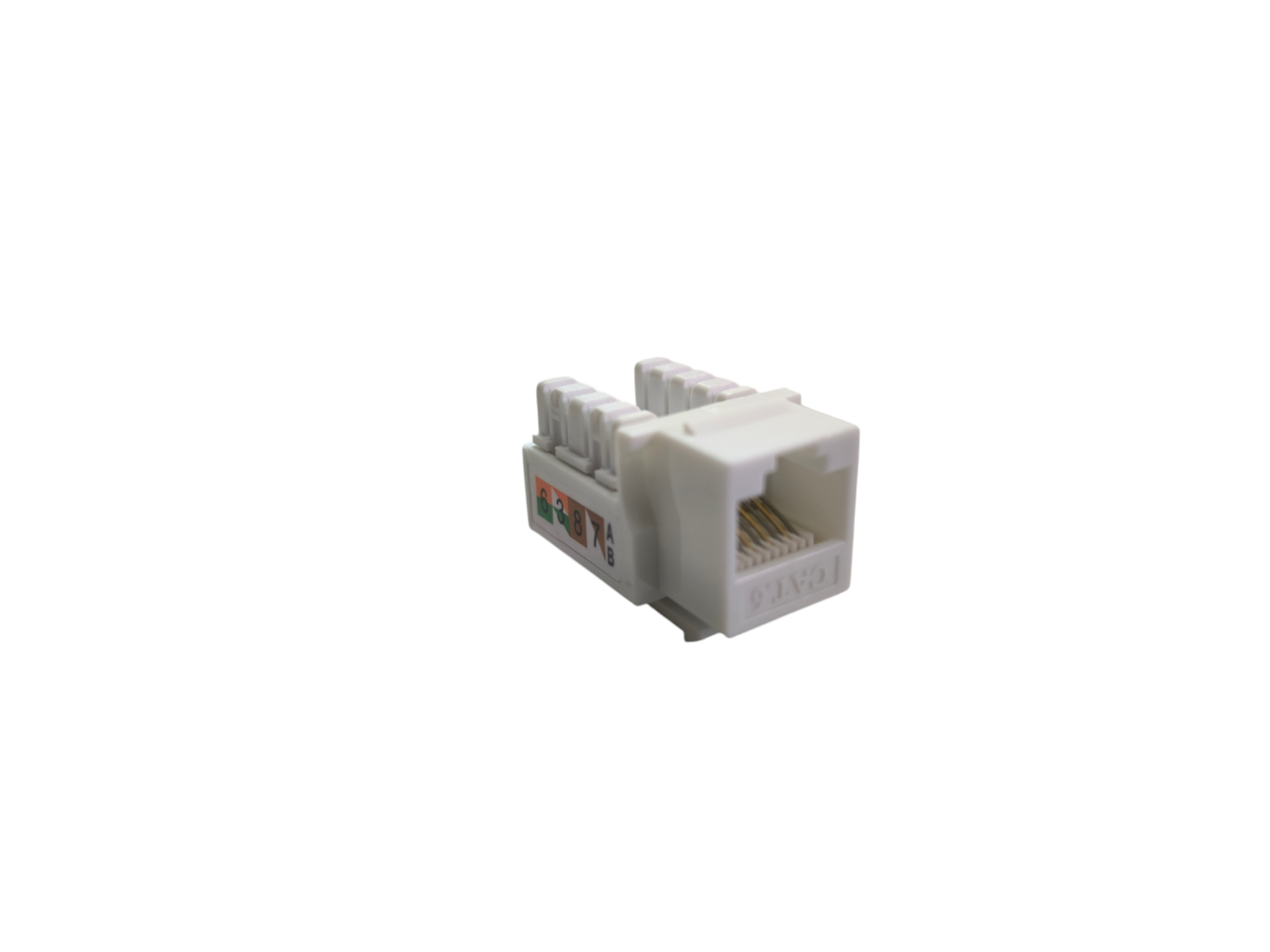

CAT6 UTP Keystone Jack 90°

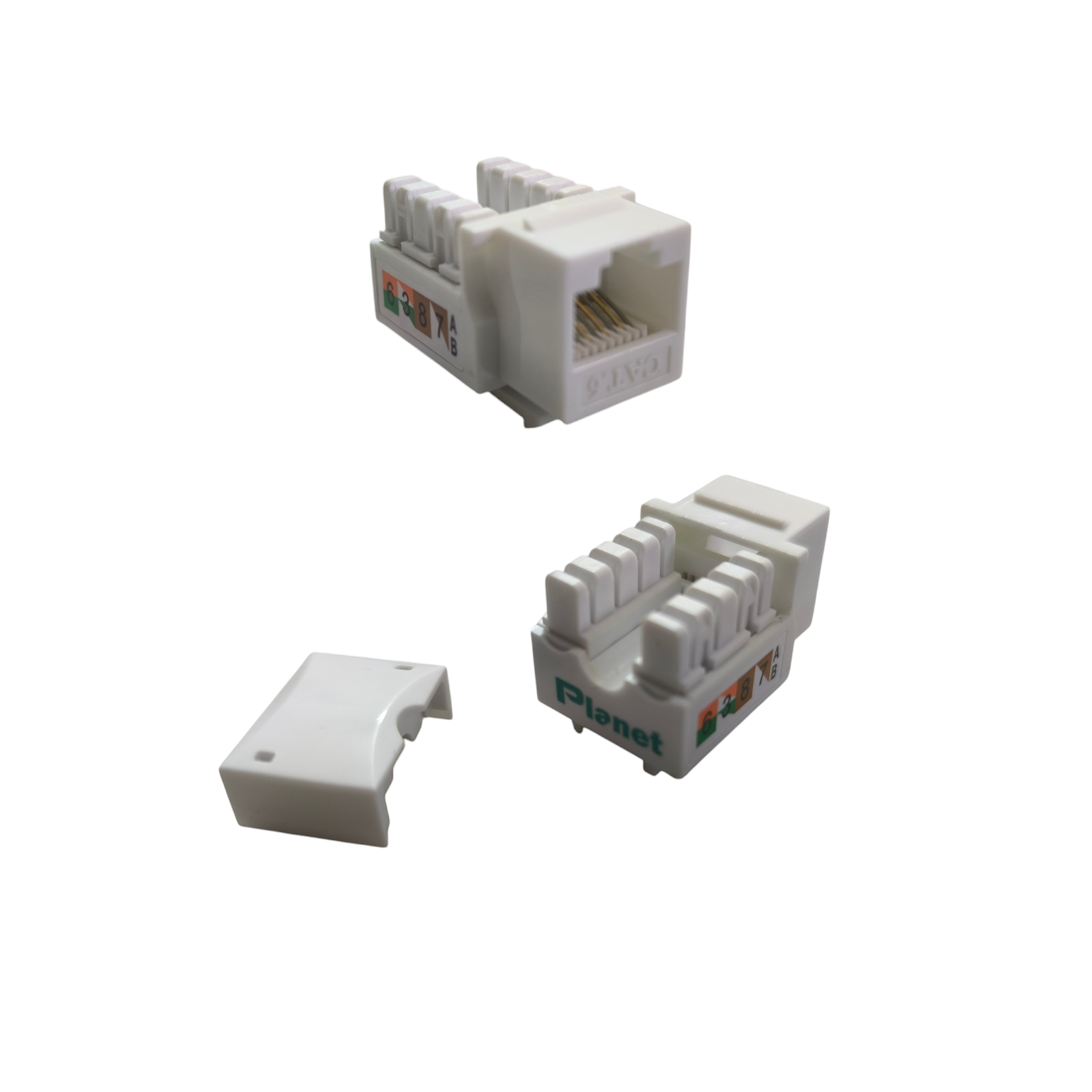

Planet Cat.6 UTP keystone jack 90°
keystone jack is designed according to TIA/EIA-568-C2 specifications, it is an essential element of Structured Cabling System.
The cat.6 keystone jack wiring is easily fit to the faceplate, also patch panels
APPLICATIONS:
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video and other applications.
CHARACTERISTICS:
| RJ45 Housing | PC |
| IDC House | PC |
| RJ45 Contact material & finished | Phosphor Bronze with 50-60” Nickel plated |
| Contact area: Min. 3mm 3” Gold plated | |
| IDC Terminal material & finished | Phosphor Bronze with 50” Tin-Lead plated. over 50-60 ” Nickel plated |
| 110 tool compatible | |
| Use for 23-24AWG stranded and solid wire | |
| Property | The IDC color combine |
| Insertion Force | 900 grams for 8 contacts |
| Retention Strength | 7.7 kgs between jack and plug |
| Operation Temperature | -30°C to 70°C |
| Jack Durability | Jack: 750 cycles Plug-Jack mating and unmating test. Insertion cycles at 20 cycles/minute max. Contact resistance test per 100 cycles |
| IDC Durability | Max. 200 pinching times |
| Standards compliant | Performance is in compliance with the TIA/EIA-568-C2 |
