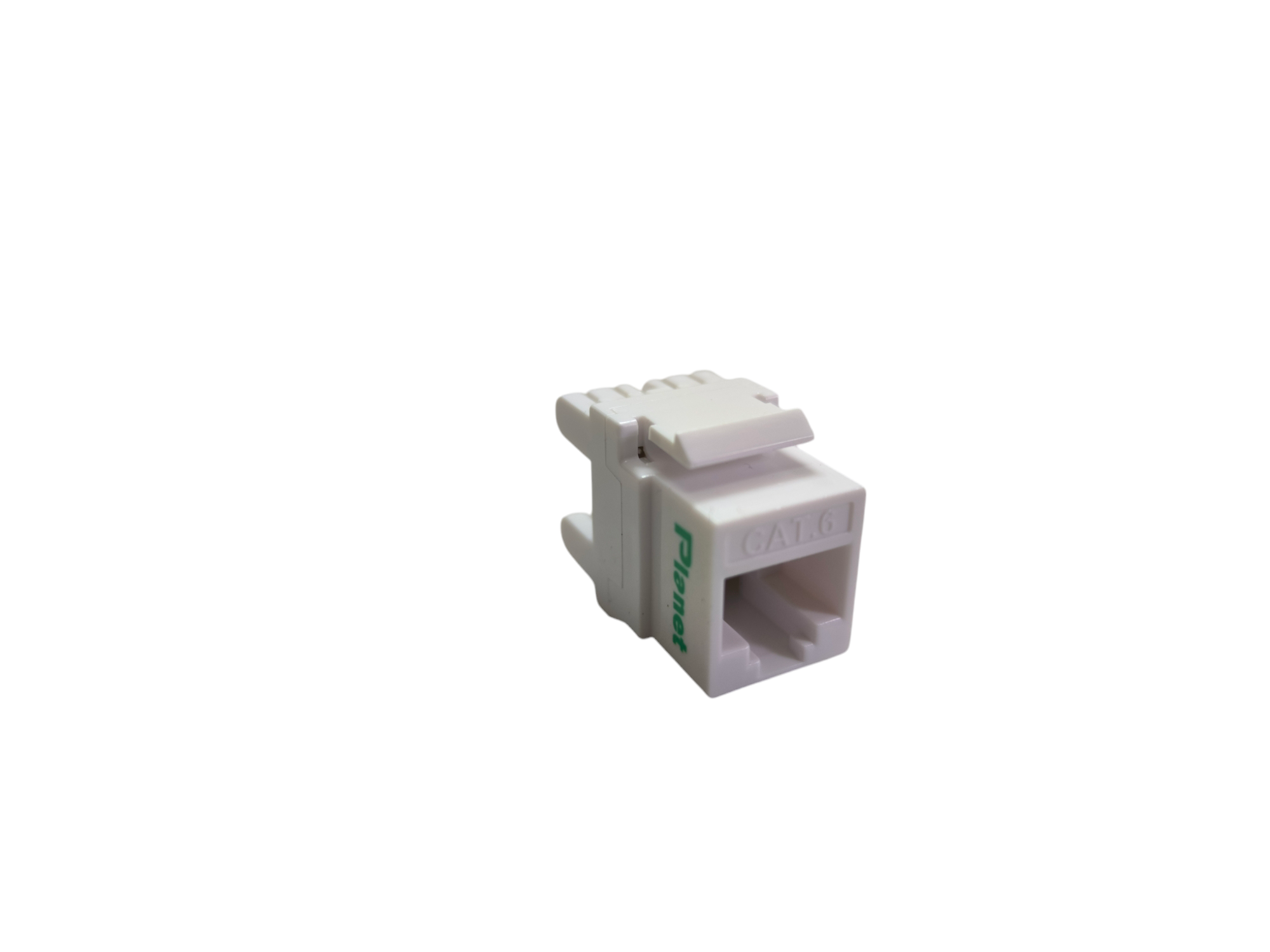

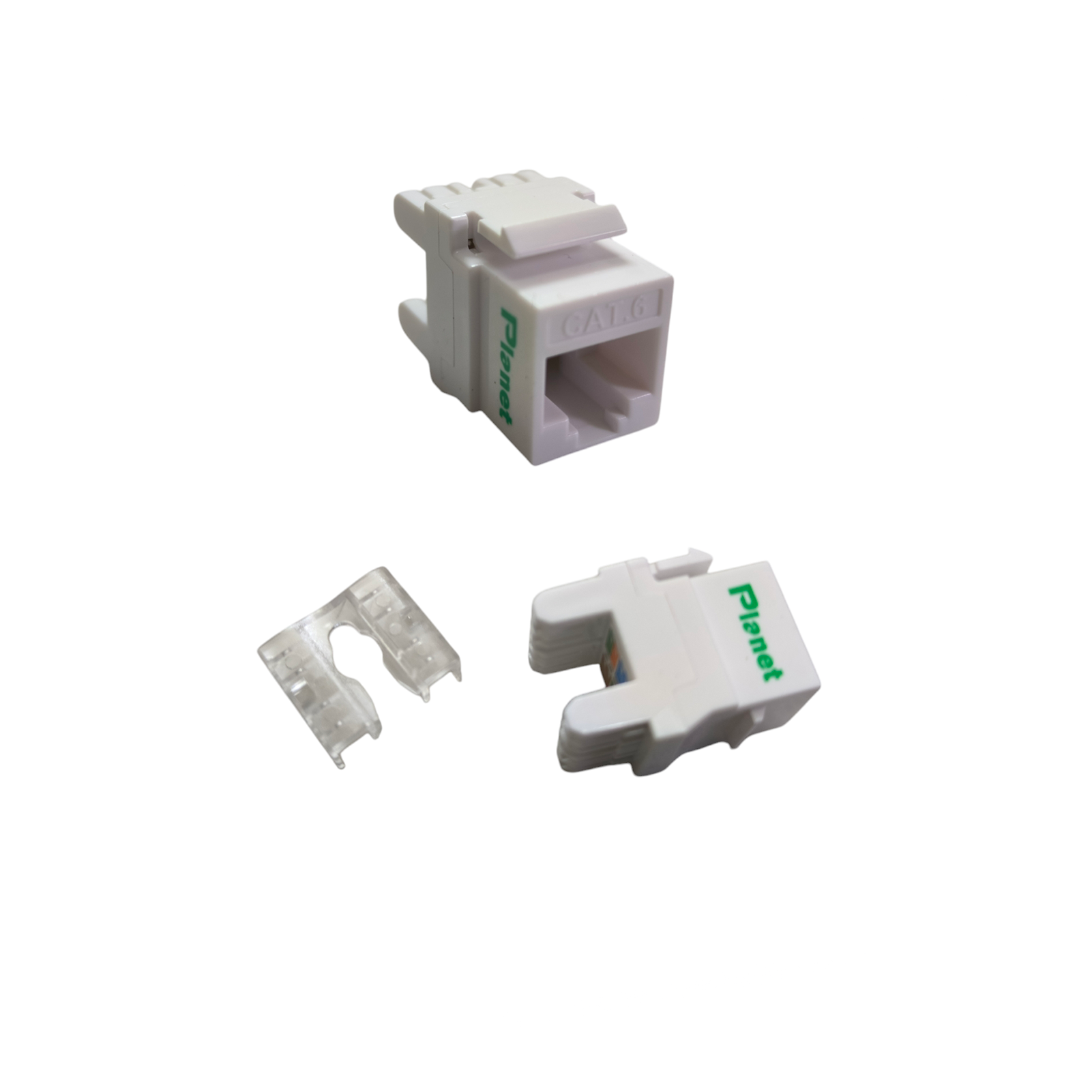

CAT6 UTP Keystone Jack 180°

Part Number: PL-KE6UPD Categories: ,
  • Category 6 unshielded 180° punch-down keystone jack for 1 to 250 MHz Class E / U/UTP channel applications.
  • T568A and T568B color coding with 110-type impact-tool termination and 180° cable entry.
  • 24 AWG solid copper conductor compatibility as standard; 26 AWG Slim solid copper is an ordering option for approved cable constructions.
  • CCA and CCS conductors are excluded; conductor diameter and insulation outside diameter shall match the released termination drawing.
  • RJ45 mating contacts use nickel underplate with 15 microinch gold standard; 30 or 50 microinch gold are optional contact finishes.
  • Lead-free tin-over-nickel IDC contact finish; gold plating applies only to the RJ45 mating-contact area.
  • Minimum 750 RJ45 mating cycles and operating temperature from -30°C to +70°C for the released product configuration.
  • Category 6 component transmission performance shall be supported by a released report through 250 MHz.
Lightbox
Property Specification
Product type Category 6 UTP 180° punch-down keystone jack; 8P8C modular interface
Category / bandwidth Category 6 connecting hardware; 1-250 MHz; Class E / U/UTP system use
RJ45 housing High-impact polycarbonate (PC); UL 94 V-0 material rating for the released resin grade
IDC housing High-impact polycarbonate (PC); T568A/B color-coded termination identification
RJ45 contact material Phosphor bronze with 50-60 microinch (1.27-1.52 micrometre) nickel underplate
Gold-plated contact area Minimum 3 mm plated contact length; 15 microinch (0.38 micrometre) gold standard
Optional gold plating 30 microinch (0.76 micrometre) or 50 microinch (1.27 micrometre) gold
IDC terminal Phosphor bronze with nickel underplate and lead-free tin finish; 110-type punch-down profile
Standard cable interface 23-24 AWG solid copper conductor; approved conductor and insulation diameters per released drawing
Optional Slim interface 26 AWG Slim solid copper conductor, only for the qualified cable construction and ordering code
Excluded conductors Copper-clad aluminium (CCA) and copper-clad steel (CCS)
Wiring scheme T568A and T568B
Insertion force Maximum 8.8 N (approximately 900 gf) for 8 contacts, subject to released mechanical verification
Plug retention Minimum 75.5 N (approximately 7.7 kgf) with a compatible plug, subject to released verification
Operating temperature -30°C to +70°C
RJ45 durability Minimum 750 mating cycles; post-cycle contact performance verified by the released test plan
IDC retermination Capability and permitted reuse governed by the released qualification report and installation instruction
Environmental Lead-free IDC finish and RoHS-compliant released material set
