CAT.7 STP RJ45 Connector Direct connection

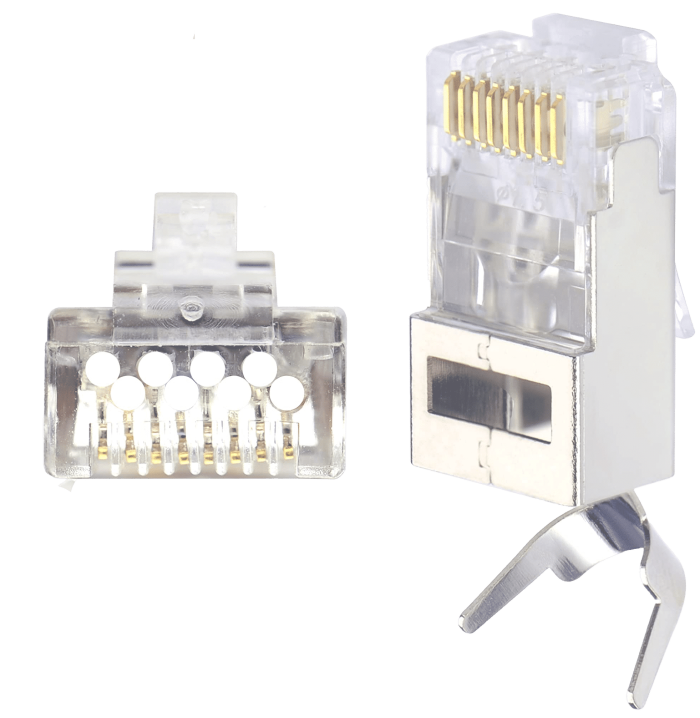

PLANET PL-RJ45SD7 is a shielded 8P8C modular plug with direct-connection crimp termination for compatible Category 7 shielded copper cable. The single-piece easy-connector construction eliminates a separate load bar or insert, while the metallic shell provides a conductive path for cable-screen continuity when correctly prepared and terminated.
The PLANET configuration uses 15 µin hard-gold plating on the RJ45 mating contact area as standard, with 30 µin and 50 µin available as optional upgrades. Category 7 / Class F transmission performance is specified up to 600 MHz; final compliance claims should be supported by applicable IEC 60603-7-7 component or channel test evidence for the actual connector-and-cable combination.
| Parameter | Specification |
| Product Type | Category 7 shielded RJ45-form-factor direct-connection modular plug |
| Part Number | PL-RJ45SD7 |
| Interface | Shielded 8P8C male modular plug |
| Inner Housing | Transparent polycarbonate (PC) |
| Shielding | Metallic shield shell for 360° cable-screen continuity when correctly terminated |
| Contact System | 8 copper-alloy blade contacts with selective gold-plated mating area |
| Gold Contact Plating | 15 µin hard gold standard; 30 µin and 50 µin optional |
| Termination | Single-piece direct crimp termination; no separate load bar or insert |
| Cable Compatibility | Compatible Category 7 shielded 4-pair cable, subject to conductor and insulation O.D. dimensional confirmation |
| Wiring Scheme | T568A or T568B pin assignment according to the cable assembly requirement |
