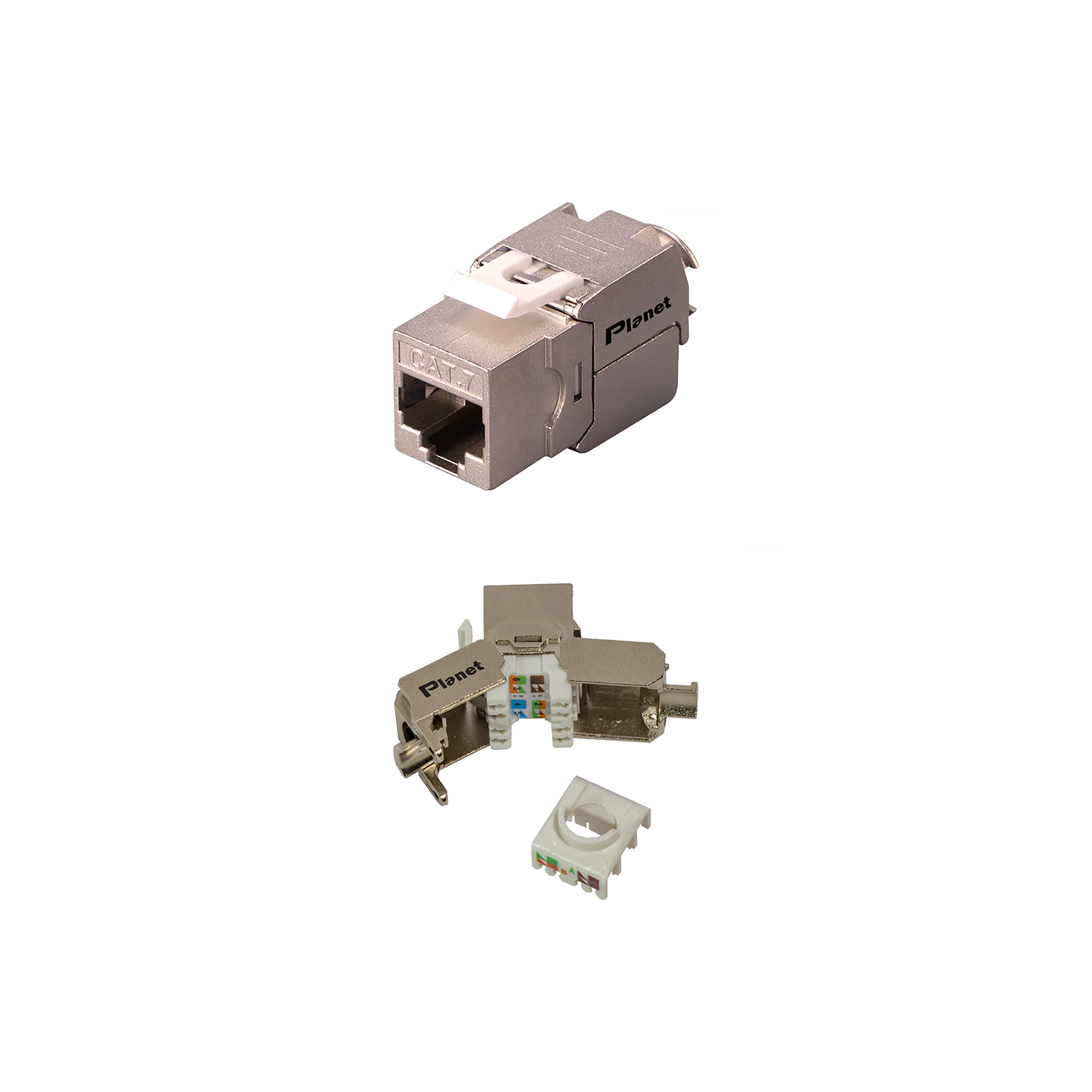

Cat 7 180° STP Toolless Keystone Jack, 180°

Part Number: PL-KE7STL Categories: ,
  • Category 7 / Class F shielded toolless keystone, 180° cable entry, intended for 1 to 600 MHz shielded channel applications.
  • S/FTP compatible when conductor construction, insulation diameter, cable diameter, pair-screen handling and overall-shield termination follow the approved production drawing and installation instruction.
  • Supports T568A and T568B wiring with a color-coded termination cap and slim-profile installation.
  • Toolless termination provides strain relief, bend-radius control and secure cable retention.
  • Accepts 24 AWG copper conductors only; CCA and CCS conductors are not accepted.
  • Zinc-alloy external shielding enclosure with flame-retardant polycarbonate internal insert.
  • RJ45 mating contacts: 15 microinch gold standard; 30 or 50 microinch optional. IDC contacts use lead-free tin over nickel.
  • Minimum 750 plug insertion/removal cycles; permitted retermination cycles and conductor-reuse limitations shall follow the released qualification report.
  • Category 7 component and Class F channel claims require a released IEC 60603-7-7 component report and a compatible qualified mated interface through 600 MHz.
Lightbox
Property Specification
Category / bandwidth Category 7 connecting hardware; Class F channel use; 1-600 MHz; claim subject to a released IEC 60603-7-7 component report
Shielding enclosure Zinc alloy; alloy grade, finish and screen-bonding method shall follow the approved drawing
Internal insert Flame-retardant polycarbonate (PC); UL 94 V-0 is a material rating, not a product listing
PCB FR-4, 1.2 mm nominal thickness
RJ45 mating contacts Phosphor bronze, 0.35 mm nominal thickness, nickel underplate; 15 microinch (0.38 micrometre) gold standard
Optional gold plating RJ45 mating-contact area: 30 microinch (0.76 micrometre) or 50 microinch (1.27 micrometre)
IDC contacts Phosphor bronze, 0.50 mm nominal thickness, nickel underplate and lead-free tin finish
Cable compatibility 23-24 AWG copper conductors ; CCA/CCS excluded; conductor construction, insulation diameter and cable diameter shall follow the approved drawing
Wiring scheme T568A and T568B color coding
Durability RJ45: minimum 750 mating cycles; IDC retermination limit and post-cycle electrical criteria shall follow the released qualification report
Storage temperature -40°C to +70°C
Operating temperature -10°C to +60°C
Voltage / current rating Declared rating: 125 VAC RMS, 1.5 A maximum; released report shall identify the contact loading and test conditions
Contact resistance 20 milliohms maximum; released test result required
Insulation resistance 100 megohms minimum at 500 VDC; released test result required
Dielectric strength 750 VAC RMS, 60 Hz for 1 minute; released test result required
Shield continuity Verify continuity from the cable overall shield through the jack enclosure to the qualified mated connector and patch panel using the approved bonding method
Environmental Lead-free IDC plating; RoHS conformity requires released production-BOM material declarations
