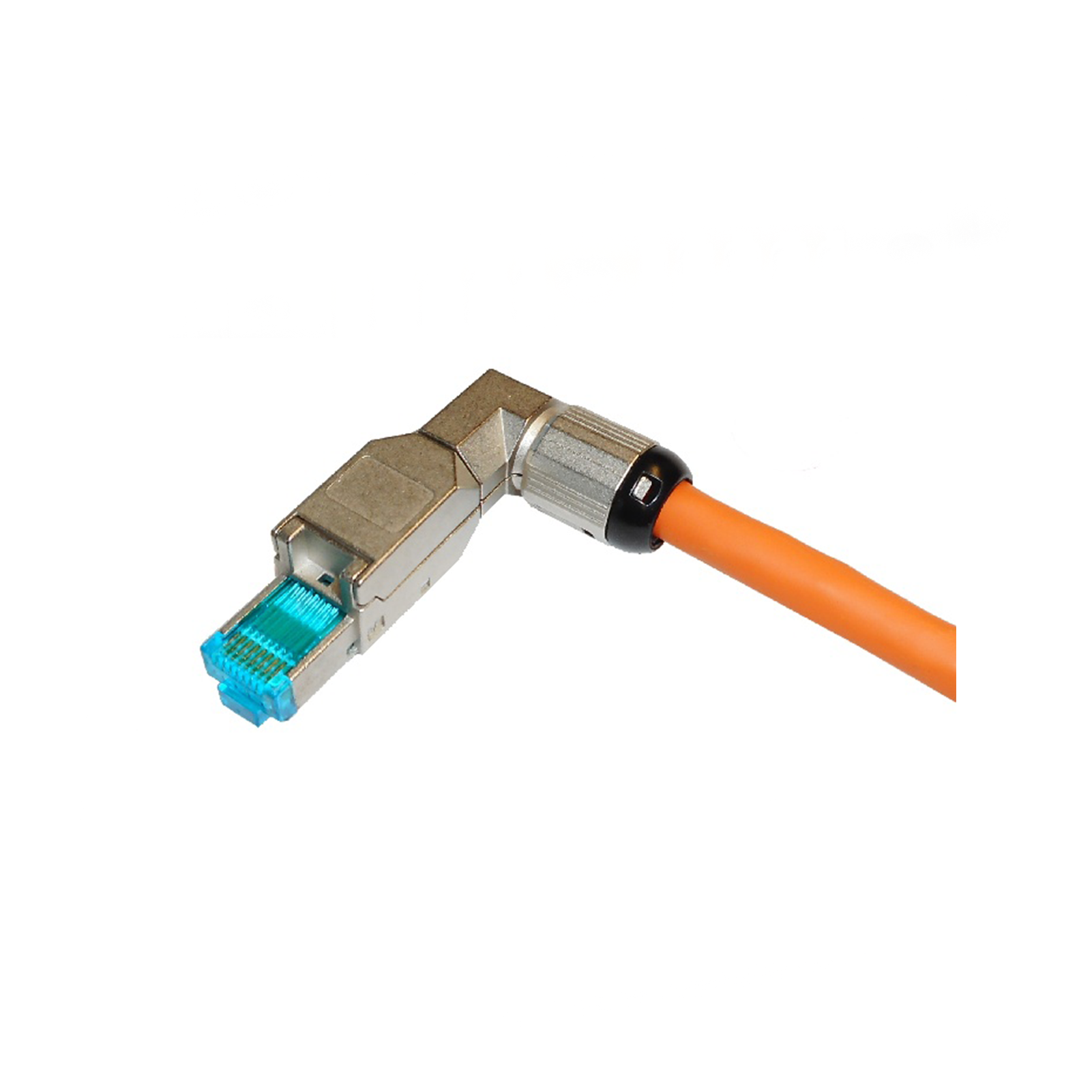

Cat.6A Shielded Angled Toolless RJ45 Plug
PLANET PL-RJAT6 is a Category 6A shielded angled toolless RJ45 field-termination plug designed for high-performance structured copper cabling in space-constrained installations. The angled cable-exit architecture can be oriented in multiple directions while the metal shield supports 360° screen continuity and the internal IDC system enables termination without a conventional crimping tool.
The PLANET commercial configuration uses 15 µin hard-gold plating on the RJ45 mating contacts as standard, with 30 µin and 50 µin available as optional upgrades. Category 6A / Class EA performance up to 500 MHz and 10GBASE-T are the product targets when installed on compatible shielded cable and verified by appropriate component or channel test evidence.
| Parameter | Specification |
| Product Type | Category 6A shielded angled toolless RJ45 field-termination plug |
| Part Number | PL-RJAT6 |
| Interface | RJ45 8P8C male plug, fully shielded |
| Cable Outlet | Angled / rotatable cable exit; 8 positions at 45° increments |
| Shielding | Metal shield housing with 360° cable-screen continuity architecture |
| Contact System | 8 phosphor-bronze RJ45 contacts with gold-plated mating area |
| Gold Contact Plating | 15 µin hard gold standard; 30 µin and 50 µin optional |
| Termination | Toolless IDC termination with color-coded T568A / T568B wiring guide |
| Cable Compatibility | 22-26 AWG solid or stranded shielded cable; typical O.D. 6.0-8.2 mm |
| Internal Materials | IDC housing: PC, UL94 V-0; PCB: FR-4, UL94 V-0, nominal 1.6 mm |
