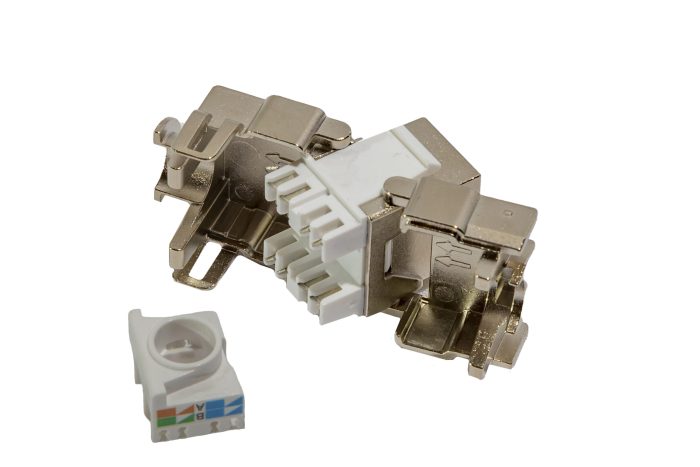

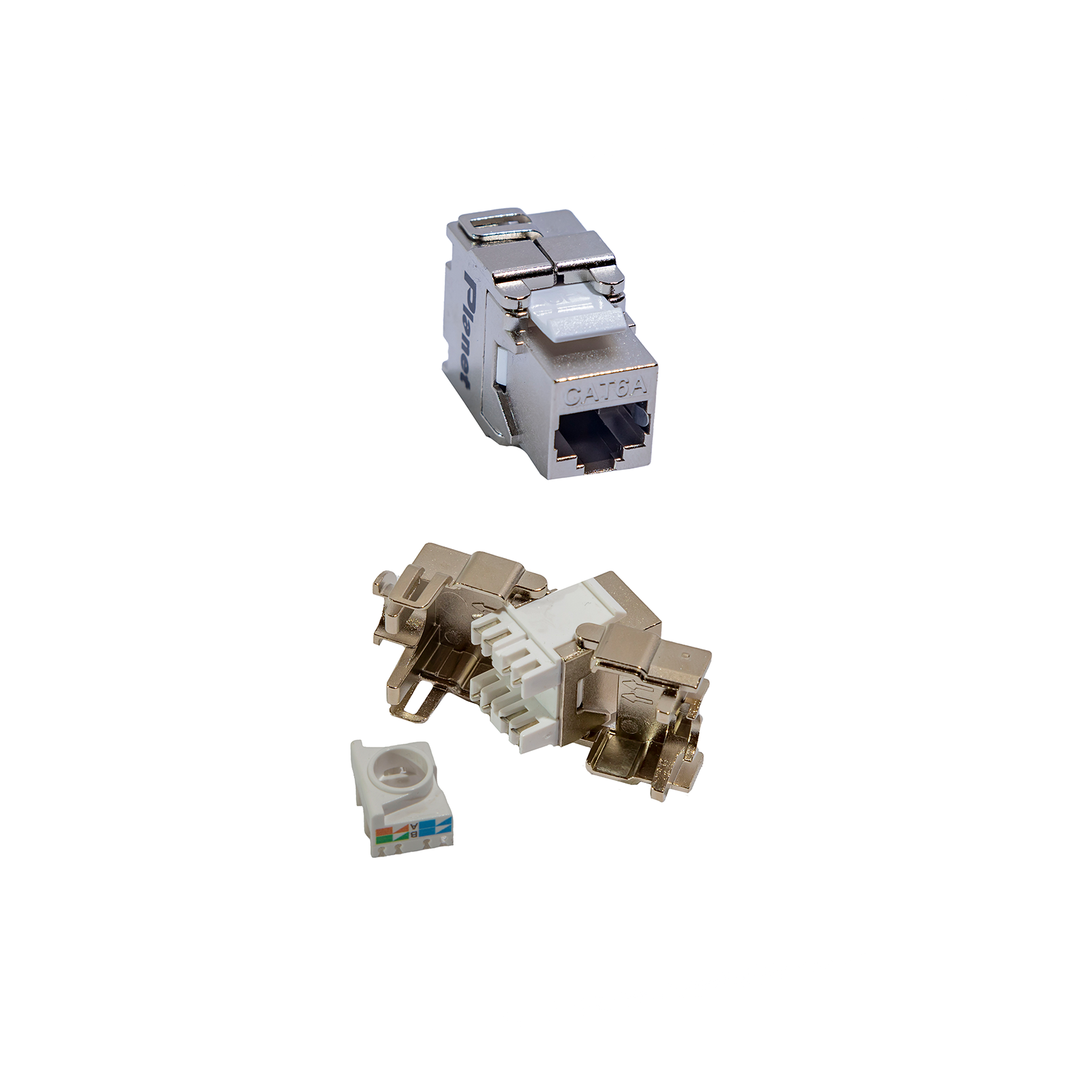

Cat 6A 180° STP Toolless Keystone Jack, 180°
Planet Cat.6A STP Toolless keystone jack 180°
Toolless keystone jack is designed according to TIA/EIA-568-C2 specifications, it is an essential element of Structured Cabling System.
The cat.6A keystone jack wiring is easily fit to the faceplate, also patch panels
APPLICATIONS:
- 10GBASE-T Ethernet
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video and other applications.
Physical Characteristics |
|
| Body Material | Housing: PC, UL94 V-0 |
| Jack Contact | phosphor bronze, 50μ inch gold plated over nickel |
| IDC Contacts | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics |
|
| Dielectric Strength | 1000V RMS for 1min |
| Current Rating | 1.5Amp Max. |
| Insulation Resistance | 10MΩ Min. |
| Contact Resistance | 2mΩ per contact |
| Temperature Range | -10°C to 60°C |
| Humidity | 10%~90%; non condensing |
| Admissible Conductor | 22AWG ~ 26AWG insulation wire |
| Body Material | Housing: PC |
| Body: Zinc Die-casting | |
| Jack contact | Phosphor bronze, 50μ inch gold |
| plated over nickel plated in contact area | |
| Operating life: Minimum 750 insertions | |
| 100μ inch nickel plated over phosphor bronze | |
| IDC Contacts | Operating life: Minimum 250 Re-terminations |
