Cat.6 UTP 48-Port Patch Panel Loaded With Module 2U

Part Number: PL-PP48UL Categories: ,

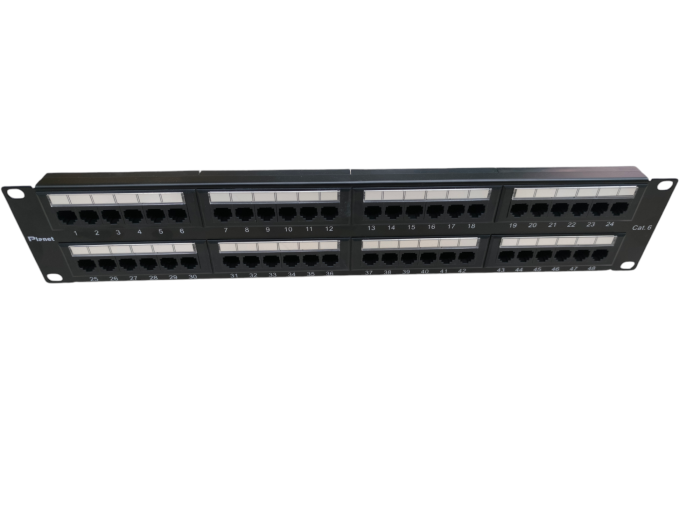

  • 48 integrated front 8P8C modular ports in two rows, sequentially identified 1-48 with writable label areas.
  • Rear dual-colour T568A/T568B IDC termination blocks; compatible with 110 and KRONE-style punch-down tools.
  • Category 6 / Class E, 100 Ω balanced connectivity with a published frequency range of 1–250 MHz.
  • Standard 482.6 mm (19-inch) rack/cabinet format in 2U nominal rack height (88.90 mm).
  • Unshielded construction with no screen or shield-bonding path; install only as part of a UTP cabling system.

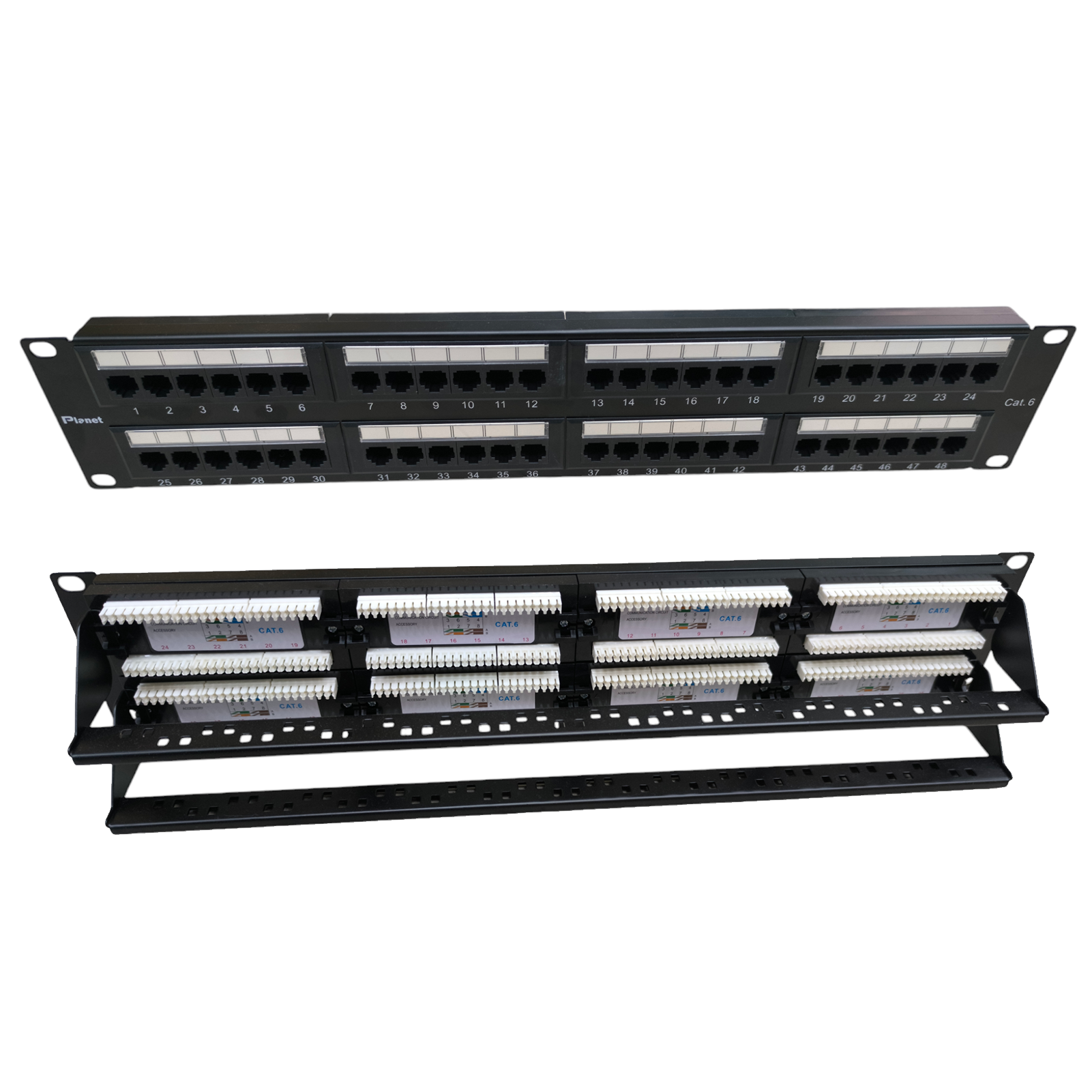

  • Two rear cable-management bars are shown in the source image. Approved drawings, packing details, Category 6 component test data and material declarations are available upon request for the exact part number and lot.
Lightbox
Parameter Specified Requirement / Technical Scope
Product type 48-port, two-row, loaded Category 6 UTP punch-down patch panel with integrated front jacks and rear IDC blocks
Part number PL-PP48UL
Port capacity 48 integrated ports in two horizontal rows; sequentially identified 1 through 48
Rack format 482.6 mm (19-inch) series; front rack/cabinet mounting
Rack height 2U nominal rack height (88.90 mm); final envelope shall follow the approved mechanical drawing
Category / bandwidth Category 6 / Class E, 100 Ω balanced connectivity, 1–250 MHz; installed link/channel performance requires field certification
Front / rear interface Front: unshielded RJ45-type 8P8C modular jacks. Rear: insulation-displacement termination blocks
Wiring scheme / tool T568A and T568B colour coding; 110 and KRONE-style punch-down tool compatible
Conductor compatibility 23–24 AWG solid or stranded copper conductors, as declared; conductor and insulation diameters shall match the approved IDC data
Construction / materials Panel: 1.5 mm SPCC with black corrosion-resistant finish. Jack housing: PBT; IDC housing: PC; bracket: black ABS
Contacts / IDC finish RJ45 contacts: phosphor bronze with nickel underplate and gold-plated mating zone. IDC terminals: phosphor bronze with tin-based finish. Exact plating and thickness per approved BOM / report; a lead-free finish is required for any RoHS claim
Durability / mechanical Declared design targets: at least 750 jack mating cycles and at least 200 IDC termination cycles. Mating/withdrawal force and post-cycle electrical compliance shall meet IEC 60603-7-4 and be demonstrated by the applicable test report
Temperature Declared operating/storage range: −30 to +70 °C; the manufacturer’s report shall identify the test condition and performance over this range
Shielding Unshielded / UTP construction; no screen continuity, shield termination or bonding-path claim
PoE / remote power Passive connectivity component. PoE suitability depends on the exact jacks, cable, contact resistance/unbalance, bundling and temperature-rise validation; no standalone current rating is claimed
Environment / dimensions Indoor, dry rack/cabinet use. Two rear cable-management bars are shown; supplied accessories, dimensions, weight, mounting hardware and packing quantity shall follow the approved drawing / packing list. No IP, outdoor, UV, plenum or flame-classification claim unless documented
