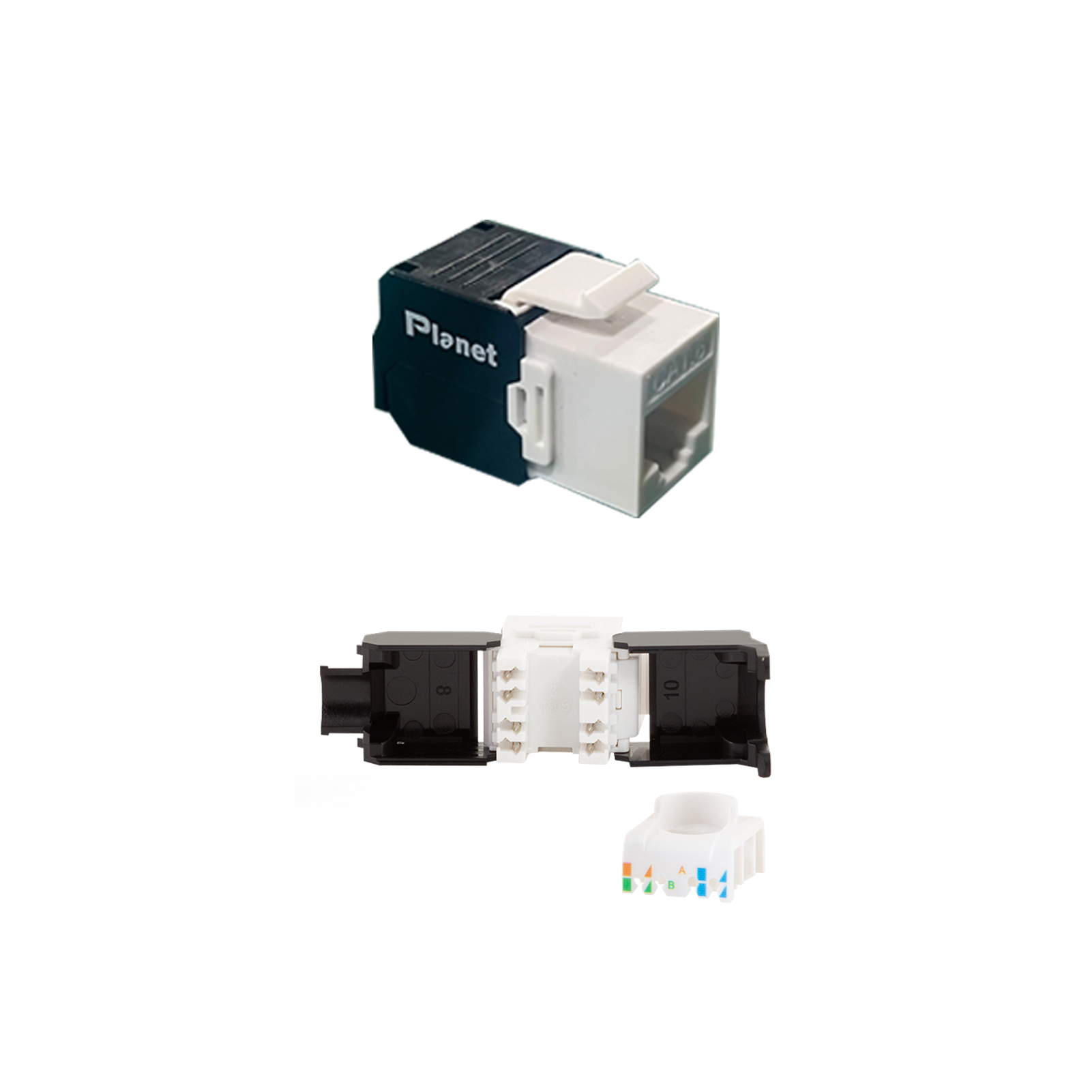

Cat 6 180° UTP Toolless Keystone Jack, 180°

Part Number: PL-KE6UTL Categories: ,
  • Category 6 unshielded toolless keystone jack, 180° cable entry, intended for 1 to 250 MHz U/UTP channel applications.
  • Supports T568A and T568B wiring with a color-coded IDC termination cap.
  • Toolless termination provides strain relief, bend-radius control and secure cable retention; the IDC profile is 110-compatible where permitted by the approved installation instruction.
  • Accepts 24 AWG solid or stranded copper conductors only; CCA and CCS conductors are not accepted. Conductor construction and insulation diameter shall follow the approved production drawing.
  • High-impact polycarbonate housing with UL 94 V-0 material flammability rating.
  • RJ45 mating contacts use nickel underplate and gold plating: 15 microinch standard; 30 or 50 microinch optional.
  • Minimum 750 plug insertion/removal cycles and lead-free, RoHS-compliant IDC finish.
  • Category 6 transmission performance shall be confirmed for the released PL-KE6UTL configuration by a component report through 250 MHz.
Lightbox
Property Specification
Category / bandwidth Category 6 connecting hardware; 1-250 MHz; unshielded U/UTP system use
RJ45 housing High-impact polycarbonate (PC), UL 94 V-0 material rating
IDC cap / housing High-impact polycarbonate (PC), UL 94 V-0 material rating
RJ45 contact material Phosphor bronze with 50-60 microinch (1.27-1.52 micrometre) nickel underplate
Gold-plated contact area Minimum 3 mm contact length; 15 microinch (0.38 micrometre) gold standard
Optional gold plating 30 microinch (0.76 micrometre) or 50 microinch (1.27 micrometre), available as options
IDC terminal Phosphor bronze, nickel underplate and lead-free tin finish; 110-compatible IDC profile subject to the approved installation instruction
Cable compatibility 23-24 AWG solid or stranded copper conductors ; CCA/CCS excluded; construction and insulation diameter per approved production drawing
Wiring scheme T568A and T568B color coding
Insertion force Maximum 8.8 N (approximately 900 gf) for 8 contacts
Plug retention Minimum 75.5 N (approximately 7.7 kgf) between jack and compatible plug
Operating temperature -30°C to +70°C
RJ45 durability Minimum 750 mating cycles; contact resistance checked at defined test intervals
IDC durability Up to 200 termination-cap operations, subject to post-cycle electrical verification
Component qualification Independent component report to ANSI/TIA-568.2-E and IEC 60603-7-4 through 250 MHz; test setup, samples, limits and PASS margins identified
Electrical verification Released report shall state rated voltage/current and measured contact-resistance, insulation-resistance and dielectric-strength results
Environmental RoHS-compliant materials; lead-free IDC plating
