CAT.3 UTP RJ11 Connector

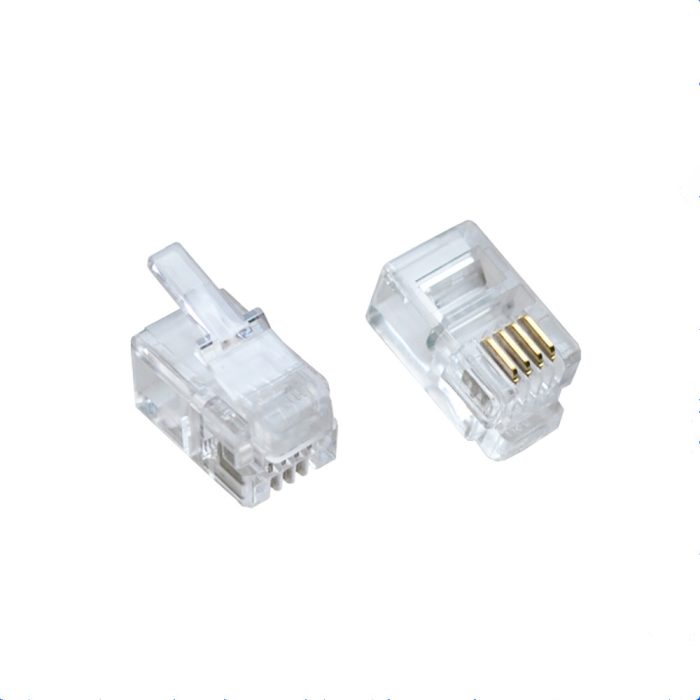

PL-RJ11U3 is a transparent unshielded modular plug configured as RJ11 6P4C (six positions / four contacts) for voice and telecommunication applications. Contact-blade geometry must match the conductor type used; solid-conductor and stranded-conductor versions should be qualified separately. The connector is intended for compatible Category 3 telephone cable and standard RJ11 crimp termination.
| Parameter | Specification |
| Product Type | Category 3 UTP RJ11 modular plug |
| Part Number | PL-RJ11U3 |
| Interface | RJ11 6P4C male modular plug (6 positions / 4 contacts) |
| Shielding | U/UTP / unshielded modular plug |
| Housing | Transparent high-impact polycarbonate; flame rating subject to resin confirmation |
| Contact System | 4 phosphor-bronze modular contacts with gold-plated mating area |
| Gold Contact Plating | 15 µin hard gold standard; 30 µin and 50 µin optional |
| Termination | Crimp termination using compatible RJ11 modular crimp tool |
| Cable Compatibility | Category 3 telephone cable; contact geometry must match solid or stranded conductor type |
| Configuration | 6P4C contact arrangement; conductor assignment per required telephone wiring scheme |
