| Product type |

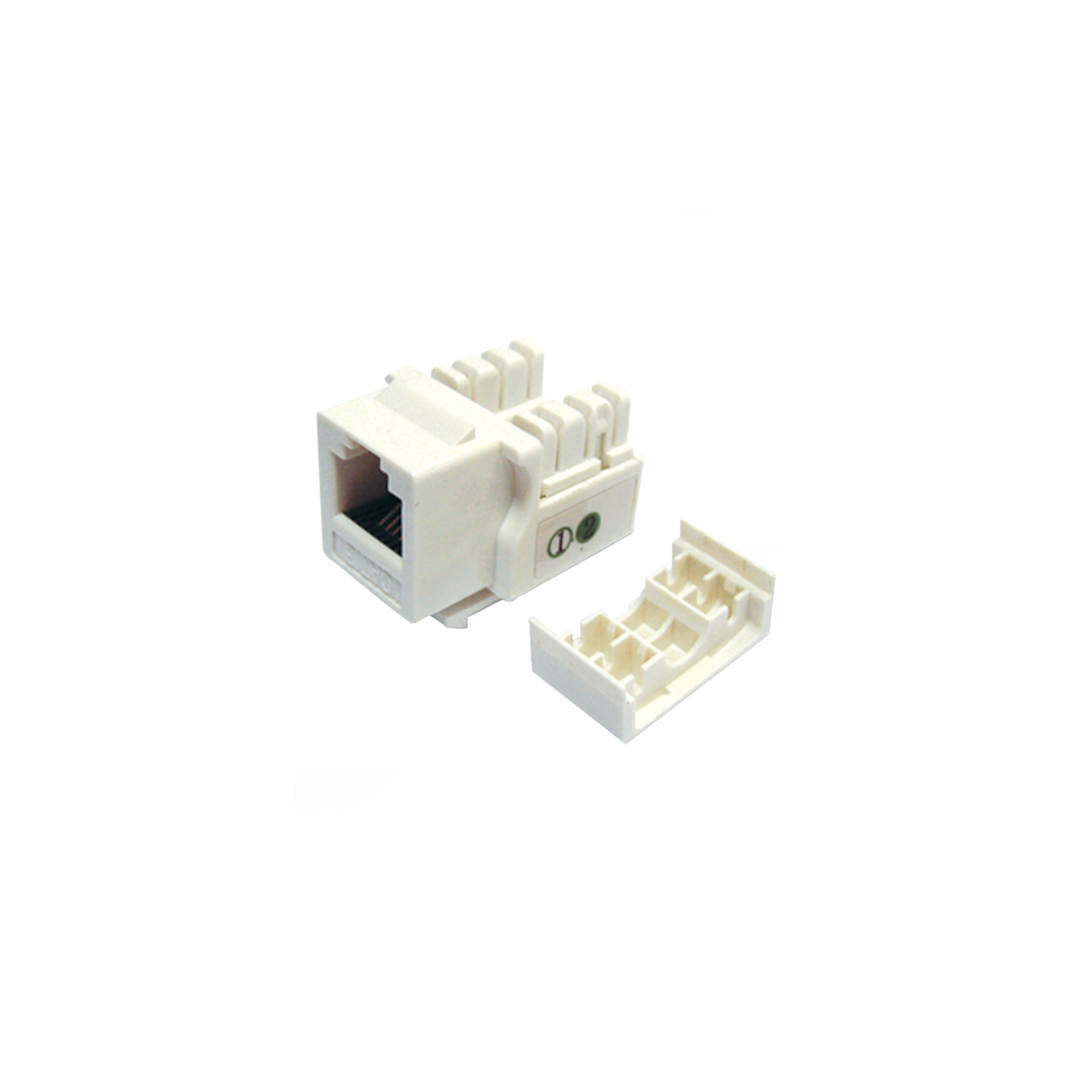

Category 3 UTP 90° keystone jack; unshielded modular interface |
| Category / bandwidth |
Category 3 connecting hardware; 1-16 MHz; Class C system use |
| Interface / contacts |
8-position modular jack with 4 fitted contacts; pin assignment per released drawing |
| Housing |
High-impact polycarbonate (PC); UL 94 V-0 material rating for the released resin grade |
| Mating-contact material |
Phosphor bronze with nickel underplate |
| Gold-plated contact area |
50 microinch (1.27 micrometre) gold over nickel in the modular mating area |
| IDC contacts |
Phosphor bronze with minimum 100 microinch (2.54 micrometre) nickel plating, per released BOM |
| Conductor compatibility |
22-26 AWG solid copper; conductor and insulation diameters per released termination drawing; CCA/CCS excluded |
| Termination method |
110 or Krone-style impact tool, subject to the released installation instruction |
| Dielectric strength |
1000 V RMS for 1 minute, subject to released test verification |
| Current rating |
1.5 A maximum per contact, subject to released test verification |
| Insulation resistance |
Minimum 10 megohm; test voltage and environmental conditions shall be stated in the released report |
| Initial contact resistance |
2 milliohm nominal per contact; the released report shall state the maximum acceptance limit |
| Operating temperature |
-10°C to +60°C |
| Relative humidity |
10% to 90%, non-condensing |
| Mating durability |
Minimum 750 insertion/removal cycles; post-cycle contact performance verified by the released test plan |
| IDC retermination |
Permitted reuse and cycle limit governed by the released qualification report and installation instruction |
| Environmental |
RoHS-compliant released material set |
