| Product type |

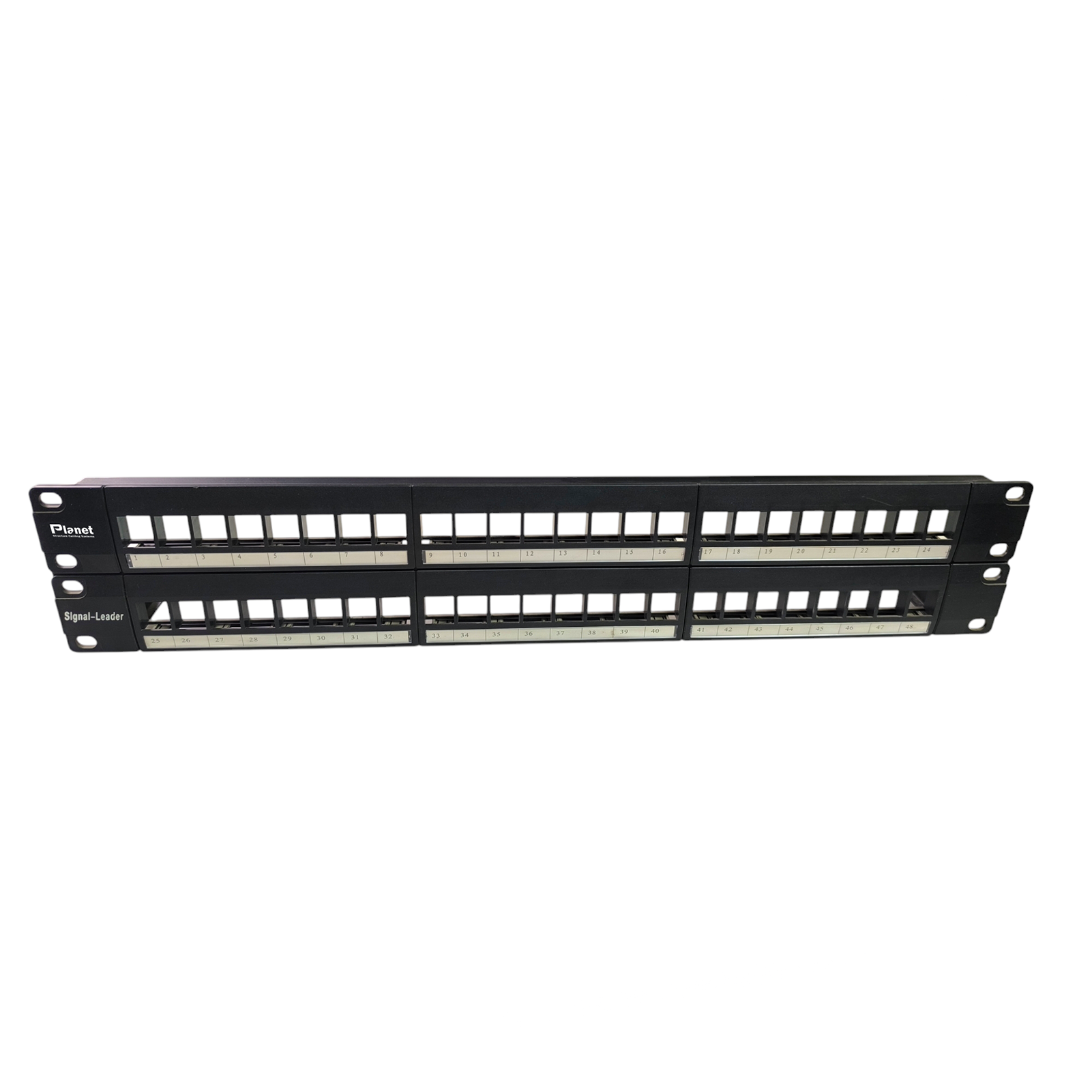

48-port unloaded / modular patch panel for unshielded keystone jacks |
| Part number |
PL-PP48UU |
| Port capacity |
48 ports in two rows of 24; identification layout per approved drawing / sample |
| Rack format |
482.6 mm (19-inch) series; front rack/cabinet mounting |
| Rack height |
2U nominal (88.90 mm); exact panel envelope per approved mechanical drawing |
| Compatible jacks |
PLANET PL-KE6UPD and PL-KE6UTL unshielded keystone jacks |
| Port interface |
PLANET keystone aperture; exact cut-out/retention dimensions controlled by the approved drawing and fit test |
| Panel construction |
Metal frame with corrosion-resistant powder-coated finish; exact material, thickness and colour controlled by the approved order/drawing |
| Cable management |
Removable rear cable-management elements with tie points; maintain cable bend radius and avoid over-tight ties |
| Port identification |
Identification / label scheme for all 48 positions per approved drawing and supplied configuration |
| Shielding / bonding |
Unshielded panel; no screened-jack bonding path or shield-continuity rating. Bond rack/cabinet only as required by project and local rules |
| Category / transmission |
No standalone Category 6 electrical claim for the empty panel. Completed link/channel performance depends on installed connectivity and field test |
| PoE / remote power |
Passive mounting component; no standalone current rating. Suitability depends on installed jacks, cable, bundling, ambient conditions and channel design |
| Installation environment |
Indoor dry telecommunications room, rack or cabinet. No IP, outdoor, UV, plenum or flame-classification claim unless separately documented |
| Overall depth / weight |
Controlled by the approved mechanical drawing and packing list; confirmation available upon request |
| Package contents |
Unloaded panel and removable cable-management elements; jacks not included. Mounting hardware only if stated on the purchase order / packing list |
