| Product type |

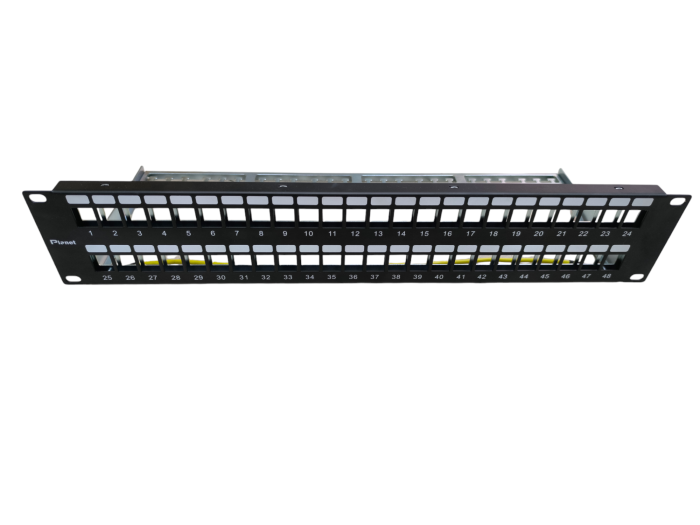

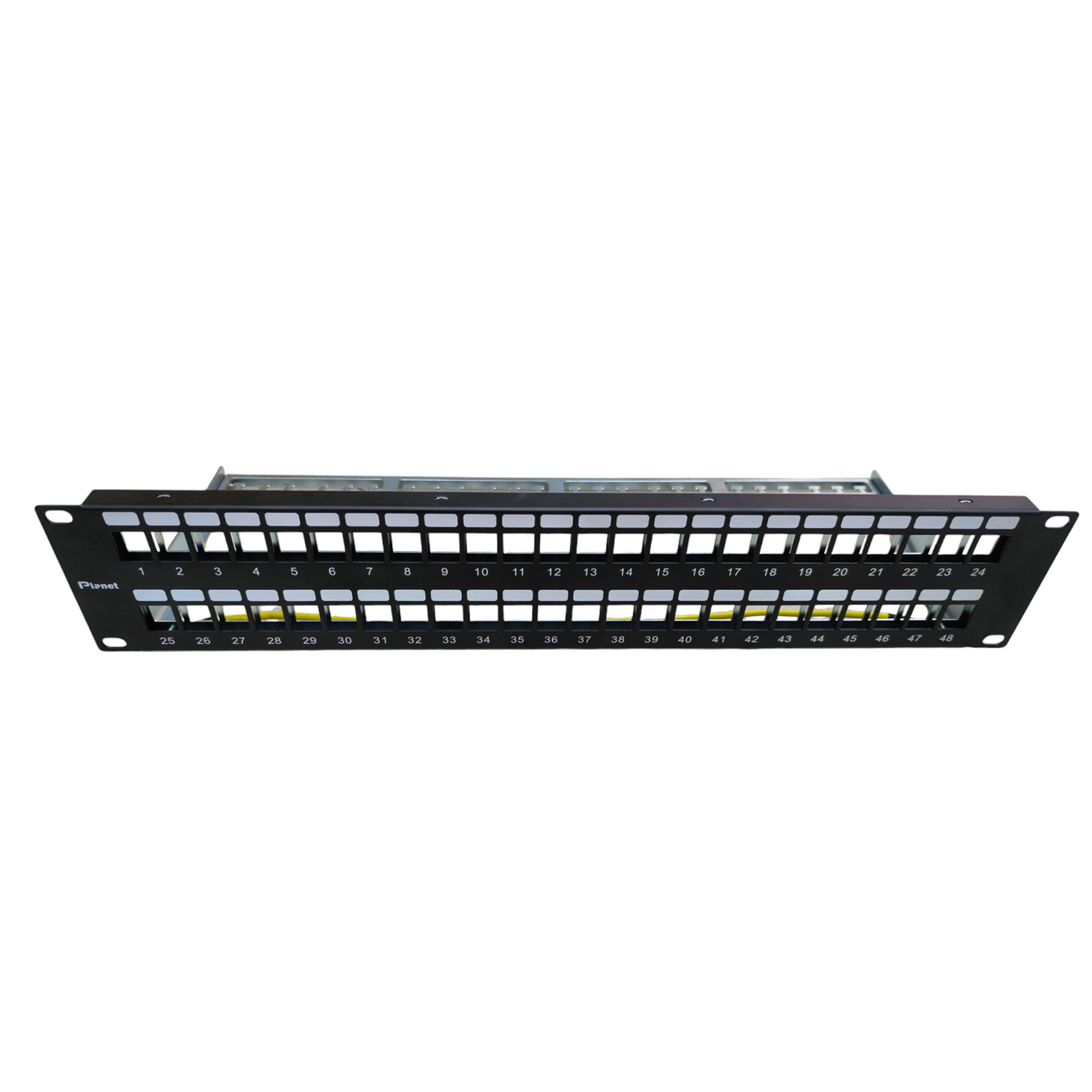

48-port unloaded / modular metal patch panel with shield-bonding provision |
| Part number |
PL-PP48SU |
| Port capacity |
48 ports in two horizontal rows of 24; numbered 1 through 48 |
| Rack format |
482.6 mm (19-inch) series; front rack/cabinet mounting |
| Rack height |
2U nominal rack height (88.90 mm); actual panel envelope shall follow the approved mechanical drawing |
| Compatible jacks |
P/N PL-KE6UPD, PL-KE6UTL, PL-KE6AUTL, PL-KE6STL, PL-KE6ASTL and PL-KE7STL; verify fit / configuration |
| Port interface |
PLANET keystone aperture; exact cut-out/retention dimensions controlled by the approved drawing and fit test |
| Panel construction |
Conductive, corrosion-resistant metal frame; exact material, thickness, finish and bonding interfaces per approved drawing / sample |
| Cable management |
Removable rear cable-management assembly with tie points; maintain cable bend radius and avoid over-tight ties |
| Port identification |
Sequential 1-48 numbering with front label strips / identification areas |
| Shielding / bonding |
Grounding lead included. Shielded operation requires shielded jacks / cable / cords, continuous termination and bonding to the designated rack / cabinet point. Unshielded jacks produce an unshielded link. Verify continuity after installation; details per approved drawing / sample |
| Category / transmission |
Empty panel has no standalone Category claim. Declared Category / Class depends on installed components and verified permanent-link / channel test |
| PoE / remote power |
Passive mounting component; no standalone current rating. Suitability depends on installed jacks, cable, bundling, ambient conditions and channel design |
| Installation environment |
Indoor dry telecommunications room, rack or cabinet. No IP, outdoor, UV, plenum or flame-classification claim unless separately documented |
| Overall depth / weight |
Per approved mechanical drawing and packing list; confirmation available upon request |
| Package contents |
Unloaded panel, rear cable-management assembly and grounding lead; jacks not included. Hardware only per packing list |
