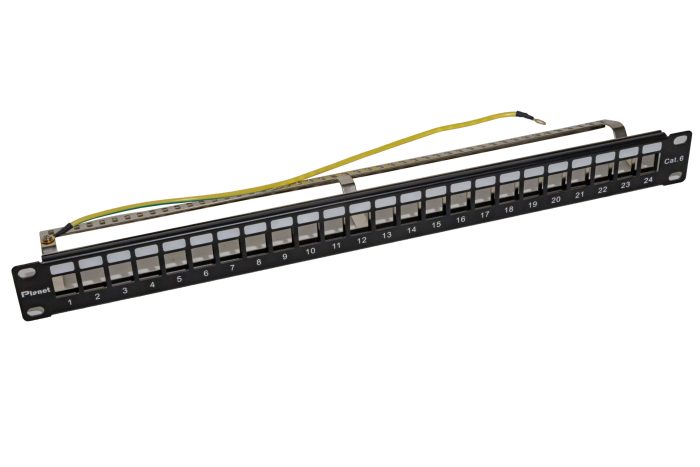

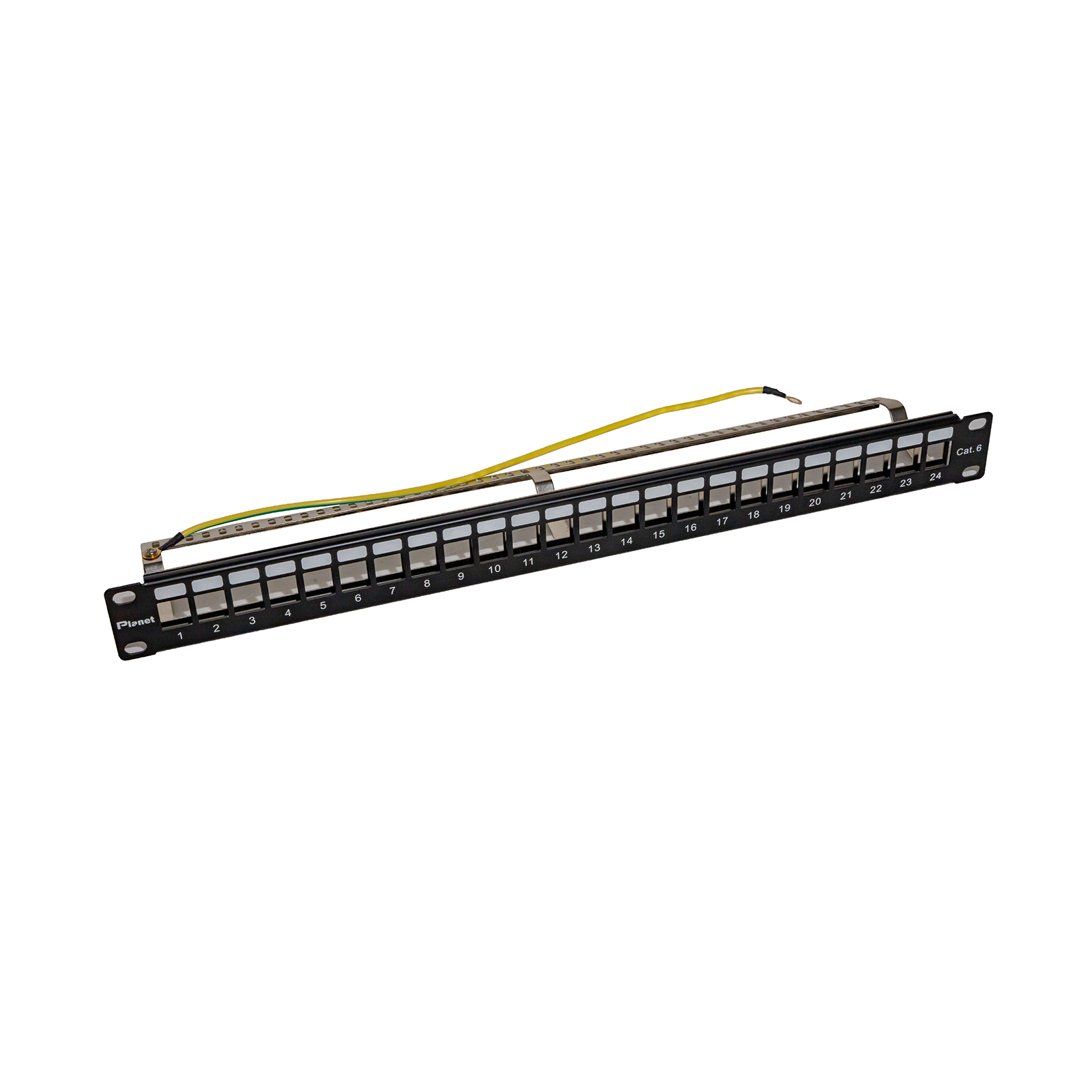

24-port Blank Patch Panel, Shielded Jack Style

Part Number: PL-PP24SU Categories: ,
  • 24 front-access keystone openings with sequential 1-24 identification and a writable / replaceable label area.
  • Compatible PLANET jack models: PL-KE6UPD, PL-KE6UTL, PL-KE6AUTL, PL-KE6STL, PL-KE6ASTL and PL-KE7STL; other models require fit approval.
  • Includes a removable rear cable-management bar and grounding lead for organized routing and panel bonding.
  • Standard 482.6 mm (19-inch) rack/cabinet format in 1U nominal rack height.
  • Shielded-channel capability requires shielded jacks and end-to-end shield continuity; unshielded jacks do not create a shielded channel.
  • RoHS compliance is declared for the product; exact material and bonding documentation is available upon request.
Lightbox
Parameter Specified Requirement / Technical Scope
Product type 24-port unloaded / modular metal patch panel with shield-bonding provision
Part number PL-PP24SU
Port capacity 24 ports in one horizontal row; numbered 1 through 24
Rack format 482.6 mm (19-inch) series; front rack/cabinet mounting
Rack height 1U nominal rack unit (44.45 mm); actual panel envelope shall follow the approved mechanical drawing
Compatible jacks P/N PL-KE6UPD, PL-KE6UTL, PL-KE6AUTL, PL-KE6STL, PL-KE6ASTL and PL-KE7STL; verify fit / configuration
Port interface PLANET keystone aperture; exact cut-out/retention dimensions controlled by the approved drawing and fit test
Panel construction Conductive, corrosion-resistant metal frame; exact material, thickness, finish and bonding interfaces per approved drawing / sample
Cable management Removable rear cable-management bar with tie points; maintain cable bend radius and avoid over-tight ties
Port identification Sequential 1-24 numbering with front label strip / identification area
Shielding / bonding Grounding lead included. Shielded operation requires shielded jacks / cable / cords, continuous termination and bonding to the designated rack / cabinet point. Unshielded jacks produce an unshielded link. Verify continuity after installation; details per approved drawing / sample
Category / transmission Empty panel has no standalone Category claim. Declared Category / Class depends on installed components and verified permanent-link / channel test
PoE / remote power Passive mounting component; no standalone current rating. Suitability depends on installed jacks, cable, bundling, ambient conditions and channel design
Installation environment Indoor dry telecommunications room, rack or cabinet. No IP, outdoor, UV, plenum or flame-classification claim unless separately documented
Overall depth / weight Per approved mechanical drawing and packing list; confirmation available upon request
Package contents Unloaded panel, rear cable manager and grounding lead; jacks not included. Hardware only per packing list
